As you're already aware, the throttle position sensor assembly, on your 1.6L Nissan Sentra (w/ an automatic transmission) is part idle switch and part throttle position sensor (this is the reason why it has two connectors).
In this tutorial, I will show how to test the idle switch part of the throttle position sensor assembly and also how to adjust it.
Contents of this tutorial:
NOTE: If you need to test the throttle position sensor part of the idle switch, this tutorial will help: How To Test The TPS (1997-1999 1.6L Nissan Sentra).
You can find this tutorial in Spanish here: Cómo Probar El Interruptor de Ralentí (1997-1999 1.6L Nissan Sentra) (at: autotecnico-online.com).
Idle Switch Continuity Tests
To identify the idle switch portion of the TPS assembly, it'll help you to know that the idle switch's connector is gray and the TP sensor's connector is brown. Also, the gray idle switch connector has only two wires coming out of it. The TPS sensor's brown connector has 3 wires coming out of it.
Diagnosing the idle switch (to see if its good or bad or misadjusted) simply involves testing the continuity between 2 specific pins with a multimeter in Ohms mode.

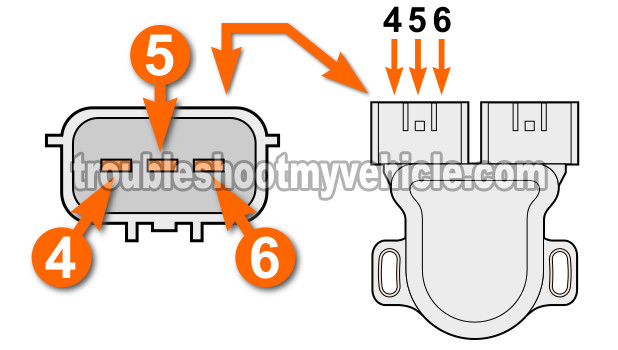

The pins we're gonna' test are labeled with the numbers 5 and 6 in the illustration in the image viewer.
|Test 1 Specifications|
|Closed Throttle||5 and 6||Continuity|
|Wide Open Throttle||5 and 6||No Continuity|
|Test 2 Specifications|
|Closed Throttle||4 and 5||No Continuity|
|Wide Open Throttle||4 and 5||Continuity|
If the throttle switch on your 1.6L Nissan Sentra doesn't pass any of the above pin continuity tests, then before replacing it, you need to make sure that it's not misadjusted. The next subheading will help you with this procedure.
Adjusting The Throttle Position Sensor Assembly
The throttle position sensor assembly has to be adjusted to a specific voltage output. In this section I'll explain the adjustment procedure.
NOTE: The TP sensor assembly needs to be connected to its connectors for the multimeter voltage adjustment to take place. The continuity adjustment is done with the TP sensor assembly disconnected from its connectors. For the voltage part of the test, you'll need to use a back-probe or a wire-piercing probe. To see what a wire-piercing probe looks like, go here: Wire Piercing Probe.
This is what you'll need to do:
- Turn the ignition switch to its Off position and make sure the TP sensor assembly is connected to its connectors.
- Turn the ignition switch to its On position but don't start the engine.
- Place your multimeter in Volts DC mode and:

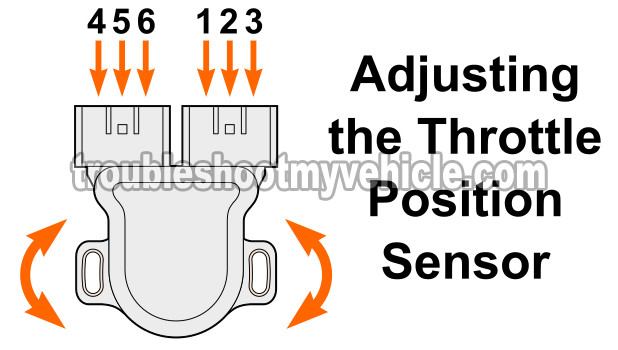

- Connect the red multimeter test lead to the wire that connects to the pin labeled with the number 2 (see the illustration in the image viewer above).
- Ground the black multimeter test lead on the battery negative (-) terminal.
- NOTE: Remember the throttle position sensor assembly must remain connected to its connectors through the entire adjustment.
- Adjust the TPS sensor by rotating it until the output voltage is within specification:
- Specification: 0.35 to 0.65 Volts DC.
- Once the output voltage has reached the above voltage specification, tighten the TP sensor assembly mounting bolts.
- Once you're done, recheck the output voltage to make sure the TP sensor didn't move on you when you tightened the two bolts.
- As a last check, disconnect the TPS assembly from its connectors and check that:
- Idle switch pins 5 and 6 have continuity only with the throttle plate closed.
- Idle switch pins 4 and 5 have continuity only with the throttle plate in its wide open position.
