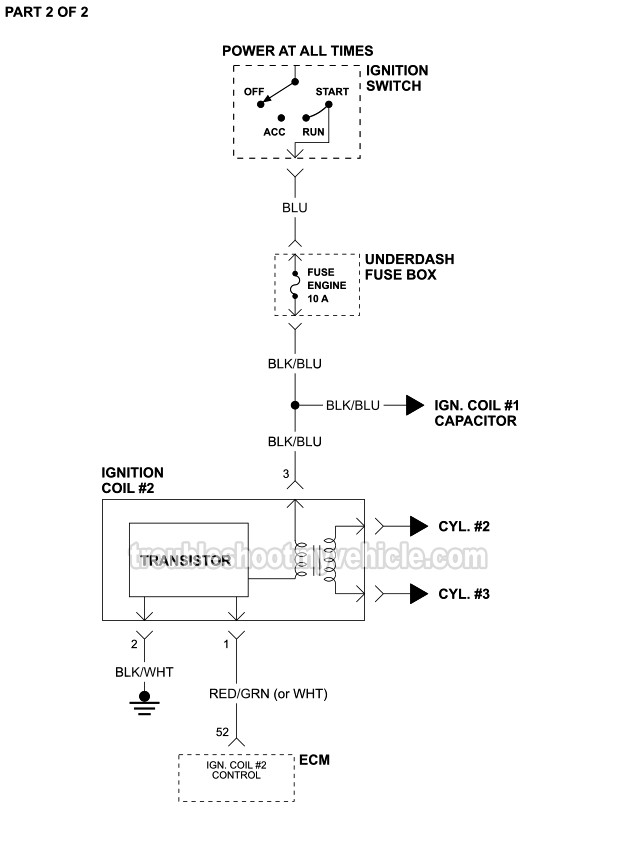

Ignition Coil Circuit Wiring Diagram (1999-2001 1.6L Mazda Protege)

APPLIES TO: This ignition coil circuit wiring diagram applies to the following vehicles:

• 1999, 2000, 2001 1.6L Mazda Protege.

The following diagnostic tutorial will help you test the ignition coils:

• How To Test The Ignition Coils (1999-2001 1.6L Mazda Protege).

RELATED WIRING DIAGRAMS:

• CKP And CMP Sensor Circuit Wiring Diagram (1999-2001 1.6L Mazda Protege).
• Fuel Pump Circuit Wiring Diagram (1999-2001 1.6L Mazda Protege).
