1993-1995 Jeep Grand Cherokee PCM Pin Out Chart (4.0L)

1993, 1994, 1995 Jeep Grand Cherokee 60 Pin Connector (4.0L)

PCM Pin Out Chart 1993, 1994, 1995 4.0L Jeep Grand Cherokee

The fuel injection computer (known in tech speak as the PCM = Powertrain Control Module) is located on the firewall (passenger side) of your Jeep Grand Cherokee.

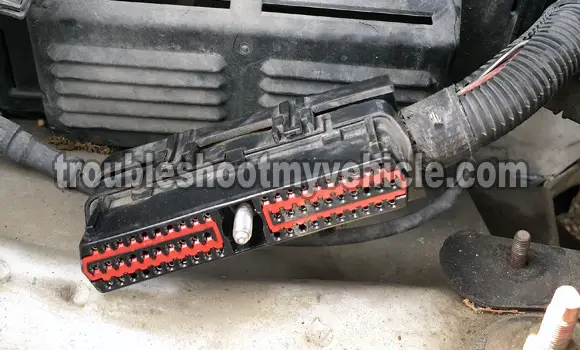

The PCM has a 60 pin connector and on the back side of the connector (wire side) are embossed a few numbers to further aid you in correctly identifying the pins (circuits).

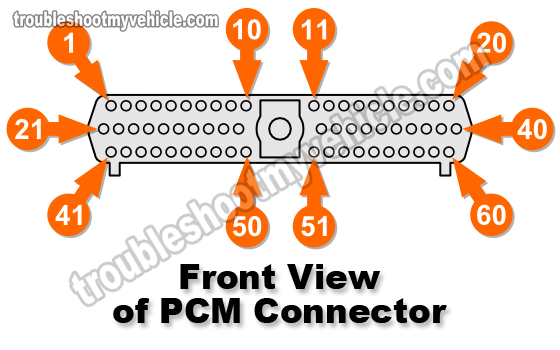

IMPORTANT: The illustration above and pin-out table below apply only to: 1993, 1994, 1995 Jeep Grand Cherokee with 4.0L engine.

You can find the 1996-1998 4.0L Jeep Grand Cherokee PCM connector pin-out charts here:

1993, 1994, 1995 4.0L Grand Cherokee 60 Pin Connector
Pin Wire Color Description
 1 RED/WHT MAP Sensor Signal
 2 TAN/BLK ECT Sensor
Battery Power (1993 Only)
Battery Power (1994, 1995 Only)
 4 BLK/LT BLU Sensor Ground
 5 BLK/TAN Ground
 6 VIO/WHT 5V Sensor Supply
 7 WHT/BLK 8V Sensor Supply
 8 --- Not Used
 9 LT BLU/RED Ignition Voltage
10 --- Not Used
11 BLK/TAN Chassis Ground
12 BLK/TAN Chassis Ground
13 LT BLU/BRN Injector #4 Driver
14 YEL/WHT Injector #3 Driver
15 TAN Injector #2 Driver
16 WHT/DK BLU Injector #1 Driver
17 --- Not Used
18 --- Not Used
19 GRY/WHT Ignition Coil Driver
20 DK GRN GEN Field Driver (Voltage Regulator)
21 BLK/RED Intake Air Temp (IAT) Sensor
22 ORG/DK BLU Throttle Position Sensor (TPS) Signal
23 --- Not Used
24 RED/LT GRN Crank Sensor Signal
25 BLK Datalink Transmit
26 VIO/BRN CCD (+)
27 DK BLU/ORG A/C Low Pressure Switch
28 LT GRN A/C Select Input
29 BRN Brake Switch Input
30 BLK/WHT Park/Neutral (A/T Only)
31 --- Not Used
32 BLK/PNK Check Engine Light
33 TAN/RED Cruise Control (Vacuum)
34 DK BLU/RED A/C Compressor Relay Ground
35 --- Not Used
36 --- Not Used
37 --- Not Used
38 GRY Injector #5 Driver
39 YEL/BLK IAC Motor “4”
40 BRN/WHT IAC Motor “2”
41 BLK/ORG Oxygen Sensor
42 --- Not Used
43 GRY/LT BLU Tachometer Output
44 GRY/BLK Camshaft Position Sensor Signal
45 BLK/YEL Data Link Receive
46 WHT/GRY CCD (-)
47 WHT/ORG Vehicle Speed Sensor (VSS) Signal
48 BRN/RED Cruise Control (SET/COAST)
49 YEL/RED Cruise Control (ON/OFF)
50 WHT/LT GRN Cruise Control (RESUME/ACCEL)
51 PNK Fuel Pump and Auto Shutdown (ASD) Relay Control
52 ---
Not Used (1993, 1994 Only)
Evap/Purge Solenoid Control (1995 Only)
53 LT GRN/RED Cruise Control (Vent)
54 ORG/BLK Upshift Indicator (M/T)
55 --- Not Used
Maintenance Indicator (1993 Only)
Not Used (1994, 1995 Only)
57 DK GRN/BLK Battery Voltage Sense (ASD Relay)
58 BRN/YEL Injector #6 Driver
59 GRY/RED IAC Motor “1”
60 VIO/BLK IAC Motor “3”
PCM Pin Out Chart 1993, 1994, 1995 4.0L Jeep Grand Cherokee

Safety Precautions

Here are some very important safety precautions when testing the wires coming out of the 60 pin PCM connector.

  1. If one or any of the wires on your Jeep Grand Cherokee DO NOT match the color stated in the pin out charts, then you should not use the pin out charts in this article. Why? Because this is the clearest indication that these ARE NOT the connector pin out charts for your particular Ram pickup.
  2. Never probe the front of the connector.
    1. You should use a wire piercing probe and probe the wire a few inches away from the connector.
    2. You should use a back probe.
  3. You should never disconnect any of the PCM connectors without first disconnecting the battery negative (-) terminal.


I've made every effort to double and triple check the above info (and in the next couple of pages) and I've used the best sources to compile it but nothing in life is perfect. I don't have a staff of proof readers or editors, I'm just a little guy typing this stuff up in my spare time to help and give back to the Do-It-Yourself community. So without further ado, here's my disclaimer:

© copyright Abraham Torres-Arredondo: This information is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

If you do spot errors, please let me know. You can use the contact form at the end of the article.
