Fuel Pump Circuit Wiring Diagram (1995 1.6L Honda Civic)

With SRS (Airbag)

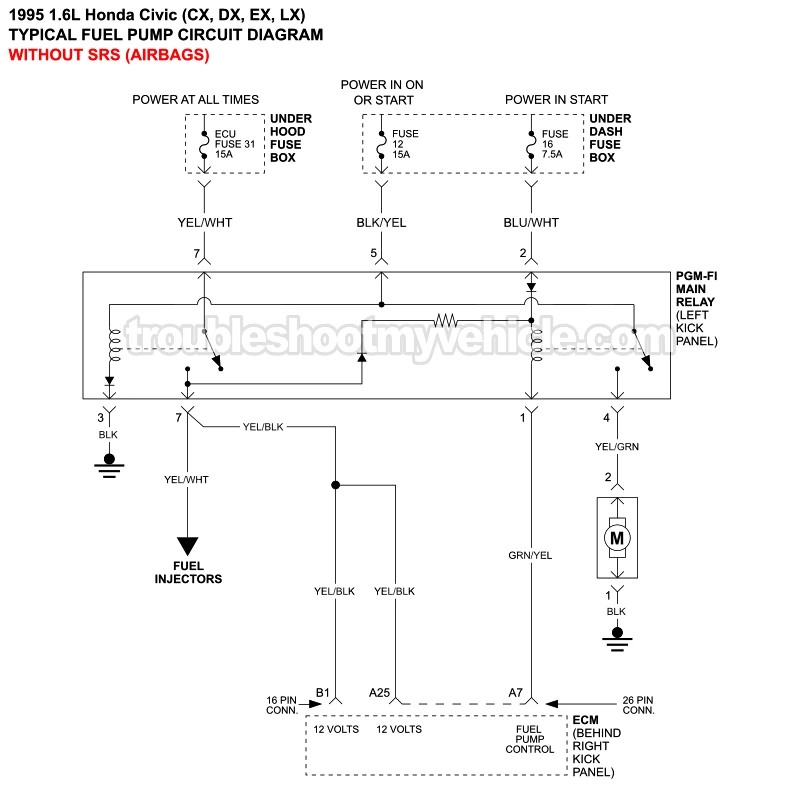

Without SRS (Airbag)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 1.6L Honda Civic CX: 1995.
• 1.6L Honda Civic DX: 1995.
• 1.6L Honda Civic EX: 1995.
• 1.6L Honda Civic LX: 1995.

NOTE: The fuel pump circuit wiring diagram above includes the following circuits:

• Fuel Pump.
• PGM-FI Main Relay.

You can find the fuel pump circuit wiring diagram for the 1996-2000 1.6L Honda Civic here:

• Fuel Pump Circuit Wiring Diagram (1996-1998 1.6L Honda Civic).
• Fuel Pump Circuit Wiring Diagram (1999-2000 1.6L Honda Civic).

Fuel Pump Test: You can find the fuel pump test here:

• How To Test The Fuel Pump In 2 Tests (1995-2000 1.6L Honda Civic).
