If you're trying to nail down a hard to diagnose misfire condition or misfire codes and need to know how to do and interpret an engine compression test, you've come to the right article.

This tutorial will walk you thru' the engine compression tests as it pertains to troubleshooting a misfire condition that is lighting up the check engine light (and storing any of the misfire codes: P0300, P0301, P0302, P0303, P0304, P0305, P0306).

You'll also be able to find out if a compression problem is causing an engine no-start problem.

In Spanish You can find this tutorial in Spanish here: Cómo Probar La Compresión Del Motor (GM 3.1L, 3.4L) (at:

Tools You'll Need:

  • Compression Gauge Tester
  • Engine Oil
  • A Helper
  • Pen and Paper

Symptoms Of Low Or No Compression

Generally, when an engine compression issue rears it head in your vehicle's engine, it'll usually cause one of two major issues:

  • Low Compression In Some But Not All Cylinders: This means that certain cylinders in the engine are not generating the proper amount of compression. This can happen due to various reasons such as worn piston rings, leaking valves, or a blown head gasket.
  • Zero PSI Compression In Some Or All Cylinders: This indicates a severe issue where either some or all cylinders are failing to generate any compression at all. This could be caused by catastrophic failures like a cracked engine block, severely damaged piston rings, or a complete valve failure.

Regardless of whether the compression issue is low or zero, you'll notice several symptoms that affect the engine's performance and drivability:

  • Hard Starting Or No Start: This happens because the engine struggles to generate enough compression to ignite the fuel-air mixture for combustion.
  • Poor Engine Performance: Due to incomplete combustion or loss of power from cylinders with low or no compression.
  • Misfiring: When cylinders don't produce enough compression, it can lead to misfires as the fuel-air mixture doesn't ignite properly.
  • Reduced Power And Performance: Lack of proper compression means the engine won't be able to deliver the expected power output.
  • Excessive Oil Consumption: If the piston rings are worn or damaged, oil can leak into the combustion chamber, leading to increased oil consumption.
  • Audible Engine Noise: Issues like valve leaks or worn piston rings can cause abnormal noises such as ticking or knocking from the engine.

In OBD II equipped vehicles (1996+), you might see specific trouble codes related to these issues:

  • P0301: Random Cylinder Misfire.
  • P0302: Cylinder Number 2 Misfire.
  • P0303: Cylinder Number 3 Misfire.
  • P0304: Cylinder Number 4 Misfire.
  • P0305: Cylinder Number 5 Misfire.
  • P0306: Cylinder Number 6 Misfire.

Why An Engine Compression Test?

An engine compression test is one of the most important tests to perform when trying to solve a hard to diagnose misfire condition (or a rough idle condition).

If only one cylinder has below average compression (compared to the other 5 cylinders), that cylinder will not contribute to engine power and you're gonna' feel it.

Also, no matter what you replace, the misfire condition or misfire codes (P0300, P0301, P0302, P303, P0304, P0305, P0306) will not go away! Unfortunately, the engine compression test is one of the most overlooked misfire troubleshooting tests.

Now, testing the compression of each cylinder is usually done after verifying that each cylinder is getting spark. At the end of this article you'll find another test article (GM 3.1L and 3.4L specific test article) that'll help you to further test a misfire condition.

Which Compression Tester Should I Buy?

There are lot of engine compression testers to choose from and many places to buy them. I'm gonna' make two recommendations to you:

1) Which one to buy:  The engine compression tester that I have always used is the Actron CP7827 Compression Tester Kit. My only complaint about this engine compression tester is that it does not come with a case to store it in.

2) Where to buy:  You can buy an engine compression tester just about anywhere, but you'll end up paying more for it (especially at your local auto parts store). The above links will help you comparison shop. I think you'll agree it's the better way to save money on the compression tester!

TEST 1: Dry Engine Compression Test

How To Test Engine Compression (GM 3.1L, 3.4L)

Testing the engine compression of the 3 cylinders that face the firewall of your 3.1L or 3.4L GM car or mini-van (Chevrolet, Buick, Oldsmobile, or Pontiac) can be quite a challenge, since removing those spark plugs is not the easiest thing in the world.

In most cases the alternator has to be removed to gain access to them. If you've never removed these spark plugs from your vehicle, I recommend buying a repair manual to brush up on the steps to do it.

NOTE: If possible, the engine should be slightly warmed up for this test, yet it can not be hot (technically: normal operating temperature) So, if the engine is completely cold, start her up and let it idle for no more than 10 minutes. If the engine has been running for a long period of time, let her cool down for about 1 hour.

OK, here's the test:

  1. 1

    Disable the fuel and ignition system. It's important that no fuel is being injected and that no spark is being fired when doing this test.

    You can easily kill these two birds with one stone by disconnecting all three of the ignition control module electrical connectors.

  2. 2

    Remove all of the six spark plugs.

    Be careful and don't drop any of the spark plugs. Dropping them could cause their Ceramic Insulator to break and this will cause a misfire.

    IMPORTANT: Before disconnecting the spark plug wires, to remove the spark plugs, tag each one to identify where it goes. This will help you to connect the right spark plug wire to the right spark plug once you're done with the test.

  3. 3

    Hand-thread the engine compression gauge into the spark plug hole that you've chosen to test first.

    Do not use any type of tool to get it tight, hand tight is enough!

  4. 4

    Once everything is set, have your helper crank the car or mini-van.

  5. 5

    Once the needle on the compression tester gauge stops climbing, have your helper stop cranking the engine.

    It normally takes about 10 seconds or engine cranking to get to this point. When the needle stops moving, you have reached the maximum compression pressure of that cylinder.

  6. 6

    Record the reading on a piece of paper along with the cylinder the reading belongs to.

  7. 7

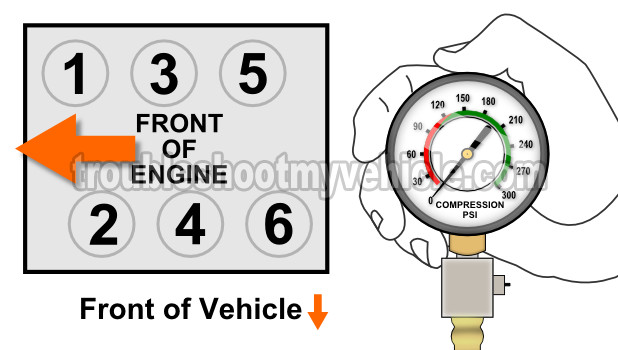

    Repeat this exact same test on the remaining engine cylinders. The illustration above will help you to identify what cylinders you're testing.

Let's take a look at what your test results mean:

CASE 1: No compression in 2 or more cylinders. This test result tells you that the engine has serious internal problems.

The most common issues would be: Broken timing chain. Or a blown head gasket. Or the engine threw a rod. To test for a blown head gasket, see this tutorial: How To Test A Blown Head Gasket (GM 3.1L, 3.4L).

CASE 2: Low compression in one or more cylinders. To a certain point, it's normal for the compression to vary a little between cylinders (as the engine accumulates thousands of miles). But if these values vary too much, then you're gonna' have a bonafide misfire on your hands.

So, your next step is to do the math and find out if these compression values are within normal parameter or not. Go to: Interpreting Your Compression Test Results.

Buick Vehicles:

  • Century 3.1L
    • 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
  • Regal 3.1L
    • 1994, 1995, 1996, 1997, 1998
  • Skylark 3.1L
    • 1994, 1995, 1996, 1997, 1998

Chevrolet Vehicles:

  • Beretta 3.1L
    • 1994, 1995, 1996
  • Corsica 3.1L
    • 1994, 1995, 1996
  • Impala 3.4L
    • 2000, 2001, 2002, 2003, 2004, 2005
  • Lumina 3.1L
    • 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001

Chevrolet Vehicles:

  • Malibu 3.1L
    • 1997, 1998, 1999, 2000, 2001, 2002, 2003
  • Monte Carlo 3.1L, 3.4L
    • 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

Oldsmobile Vehicles:

  • Achieva 3.1L
    • 1995, 1996, 1997, 1998
  • Alero 3.4L
    • 1999, 2000, 2001, 2002, 2003, 2004
  • Cutlass (& Ciera) 3.1L
    • 1995, 1996, 1997, 1998, 1999
  • Cutlass Supreme 3.1L
    • 1995, 1996, 1997

Pontiac Vehicles:

  • Grand Am 3.1L, 3.4L
    • 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005
  • Grand Prix 3.1L
    • 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003
