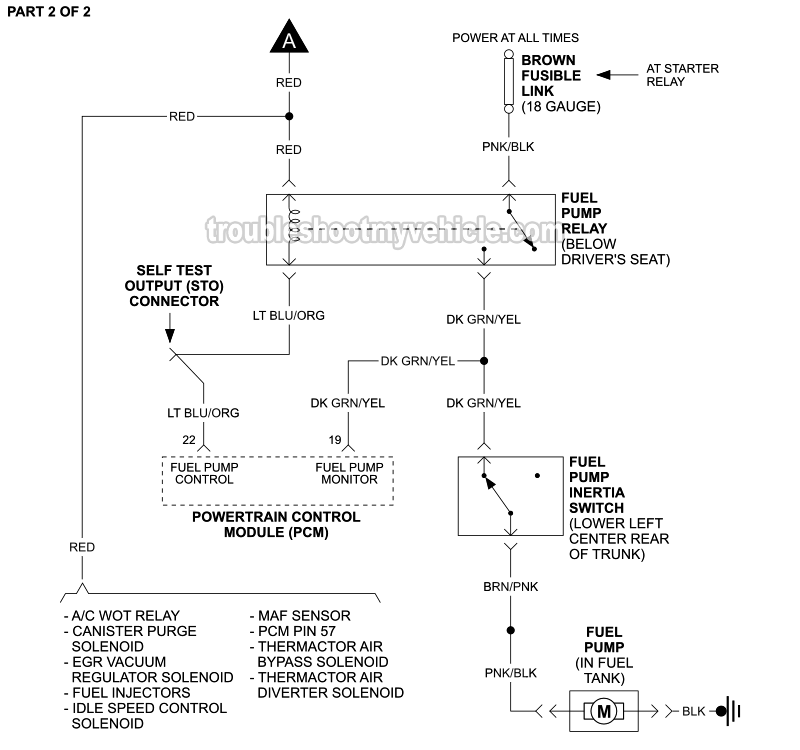

Fuel Pump Circuit Wiring Diagram (1991 5.0L V8 Ford Mustang)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 5.0L V8 Ford Mustang: 1991.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Pump.
• Fuel Pump Inertia Switch.
• Fuel Pump Relay.
• EEC Power Relay.

Wiring Diagrams: You can find all of the available 5.0L V8 Mustang wiring diagrams here:

• 5.0L Mustang Index of Articles.
