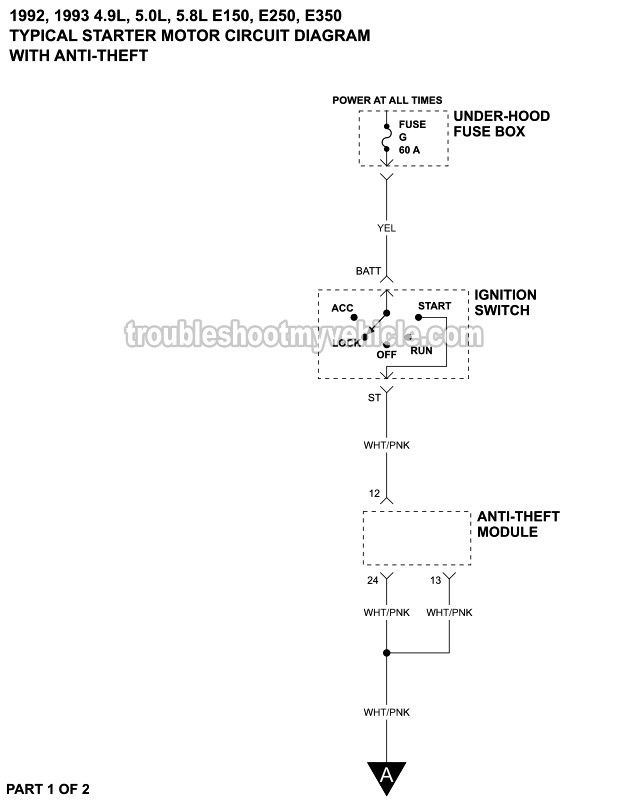

Starter Motor Circuit Diagram (1992-1993 Ford E150, E250, E350)

DIAGRAM 2: With Anti-Theft System

APPLIES TO: This simplified starter motor circuit wiring diagram applies to the following Ford E-Series full-size vans with the anti-theft system:

• 4.9L E150, E250, E350: 1992, 1993.
• 5.0L F150, F250: 1992, 1993.
• 5.8L E150, E250, E350: 1992, 1993.

This typical circuit diagram includes the following circuits:

• Ignition Switch Circuit.
• Starter Motor Relay.
• Clutch Pedal Switch.
• Starter Motor Circuit.

You can find the 1992-1993 starter motor wiring diagram here:

• Starter Motor Circuit Diagram (1994-1995 Ford E150, E250, E350).
