Fuel Pump Wiring Diagram (1996 Ford E150, E250, E350)

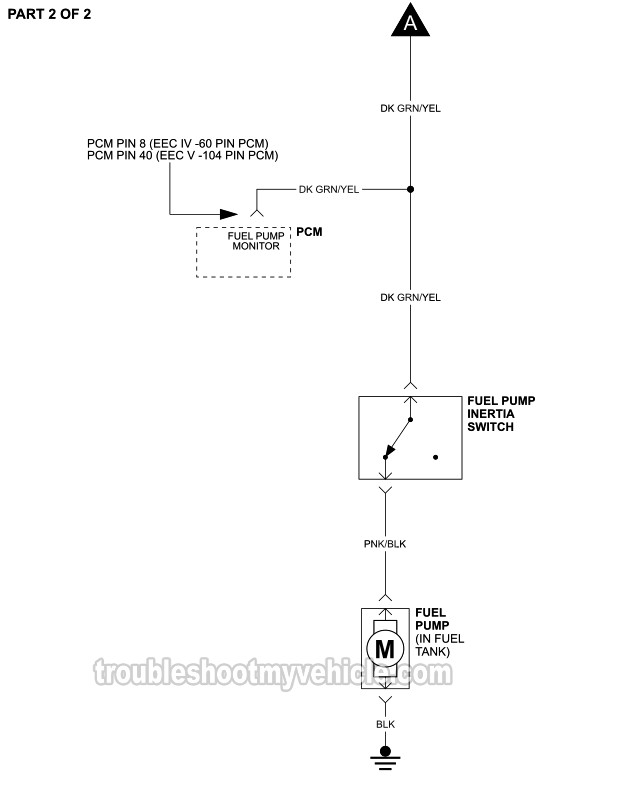

This typical circuit diagram of the fuel pump circuit applies to:

• 1996 (4.9L, 5.0L, 5.8L, 7.5L) Ford E150, E250 and E350.

This fuel pump circuit wiring diagram includes the following circuits:

• Fuel Pump Relay.
• Fuel Pump Inertia Switch.
• Fuel Pump.

Need to test test the fuel pump? This tutorial will help:

• How To Test The Fuel Pump (1986-1996 Ford E150, E250, E350).

NOTE: It's important to find out if your E-Series van has the EEC-IV or the EEC-V fuel system.

The major difference between them is that the EEC-IV fuel injection computer has 60 pins. The EEC-V fuel injection computer has 104 pins.

You can find the fuel pump circuit wiring diagrams for the 1992-1995 Ford E150 (E250, E350) here:

• Fuel Pump Wiring Diagram (1992-1993 Ford E150, E250, E350).
• Fuel Pump Wiring Diagram (1994-1995 Ford E150, E250, E350).
