Oxygen Sensor Circuit Wiring Diagram (1996, 1997 4.6L Crown Victoria, Grand Marquis)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

• 4.6L Ford Crown Victoria: 1996, 1997.
• 4.6L Mercury Grand Marquis: 1996, 1997.

NOTE: This wiring diagrams includes the following circuit components:

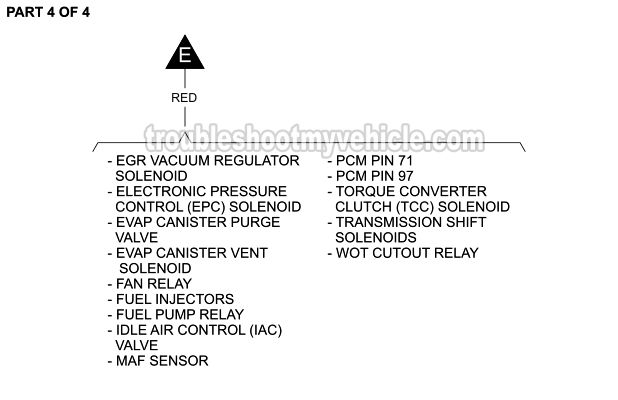

• PCM Power Relay.

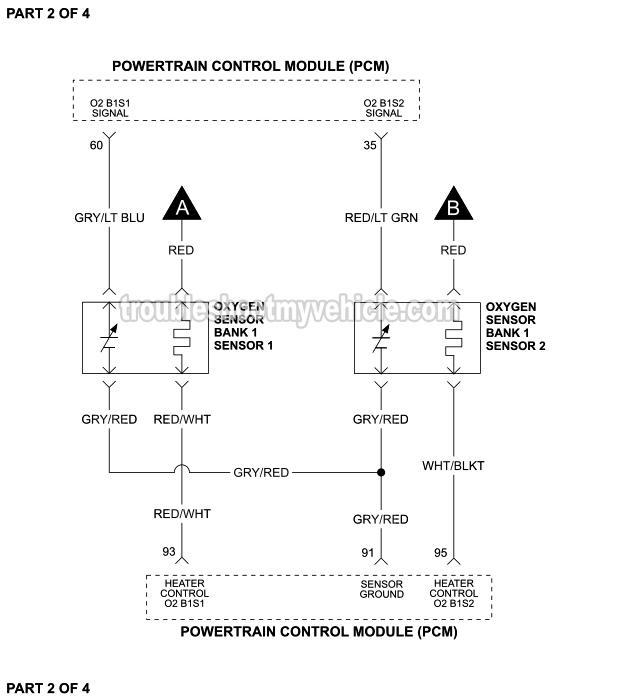

• Oxygen Sensor B1S1.
• Oxygen Sensor B1S2.

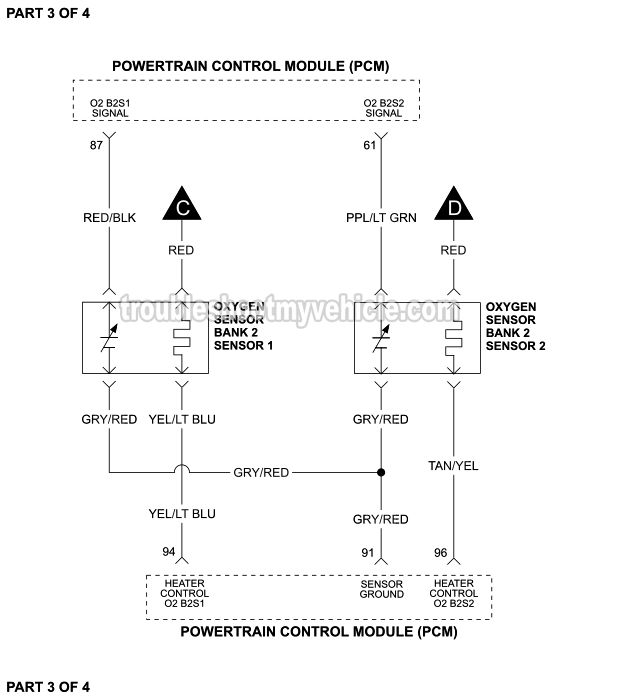

• Oxygen Sensor B2S1.
• Oxygen Sensor B2S2.

WIRING DIAGRAMS: You can find all of the available 4.6L Crown Vic/Grand Marquis wiring diagrams in this index:

• 4.6L Crown Victoria And Grand Marquis Index of Articles.
