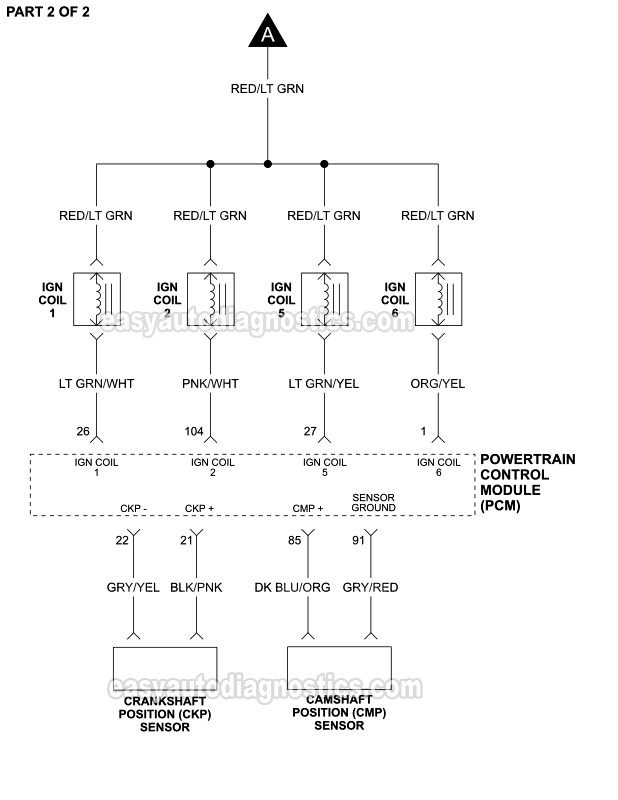

Ignition System Circuit Wiring Diagram (1998 4.6L Crown Victoria, Grand Marquis)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

• 4.6L Ford Crown Victoria: 1998.
• 4.6L Mercury Grand Marquis: 1998.

NOTE: This wiring diagrams includes the following circuit components:

• Coil-On-Plug (COP) Ignition Coil.
• Crankshaft Position (CKP) Sensor.
• Camshaft Position (CMP) Sensor.

WIRING DIAGRAMS: You can find all of the available 4.6L Crown Vic/Grand Marquis wiring diagrams in this index:

• 4.6L Crown Victoria And Grand Marquis Index of Articles.
