![PART 1 of 2: Ignition System Circuit Wiring Diagram (1999-2000 4.6L Crown Victoria, Grand Marquis) PART 1 of 2: Ignition System Circuit Wiring Diagram (1999-2000 4.6L Crown Victoria, Grand Marquis)](/images/articles-1300-1399/1300/1306/circuit-diagram-1.webp)

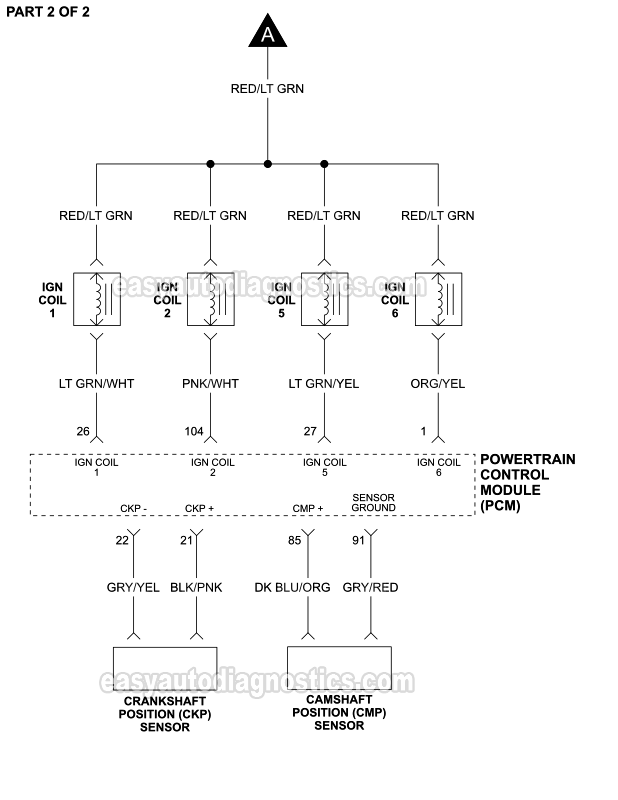

![PART 2 of 2: Ignition System Circuit Wiring Diagram (1999-2000 4.6L Crown Victoria, Grand Marquis) PART 2 of 2: Ignition System Circuit Wiring Diagram (1999-2000 4.6L Crown Victoria, Grand Marquis)](/images/articles-1300-1399/1300/1306/circuit-diagram-2.webp)
APPLIES TO: This circuit wiring diagram applies to the following vehicles:
- 4.6L Ford Crown Victoria: 1999, 2000.
- 4.6L Mercury Grand Marquis: 1999, 2000.
NOTE: This wiring diagrams includes the following circuit components:
- Coil-On-Plug (COP) Ignition Coil.
- Crankshaft Position (CKP) Sensor.
- Camshaft Position (CMP) Sensor.
WIRING DIAGRAMS: You can find all of the available 4.6L Crown Vic/Grand Marquis wiring diagrams in this index:
