APPLIES TO: This circuit wiring diagram applies to the following vehicles:
- 4.6L Ford Crown Victoria: 1998, 1999, 2000.
- 4.6L Mercury Grand Marquis: 1998, 1999, 2000.

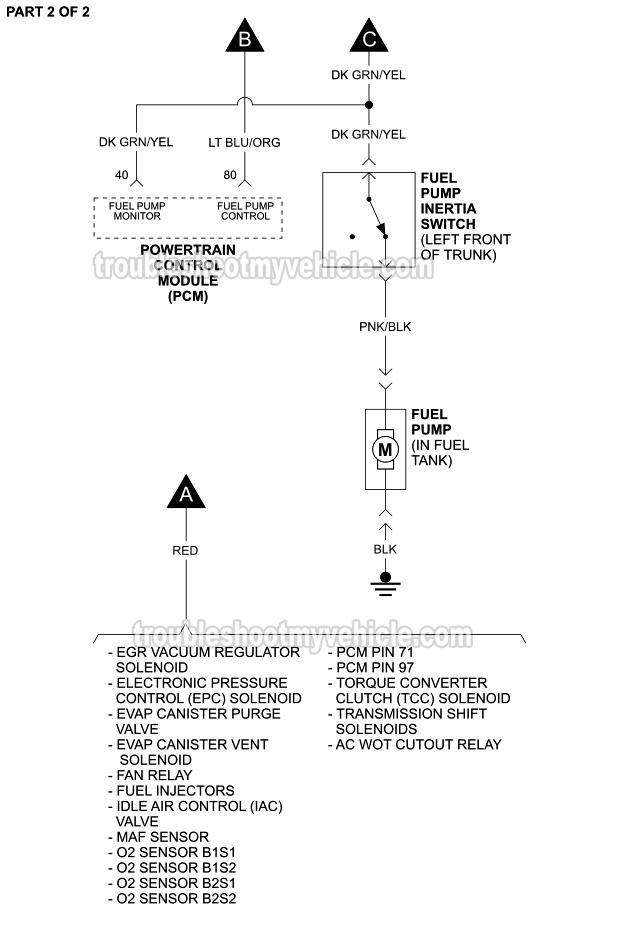

NOTE: This wiring diagrams includes the following circuit components:
- Fuel Pump Relay.
- Fuel Pump Inertia Switch.
- Fuel Pump.
WIRING DIAGRAMS: You can find all of the available 4.6L Crown Vic/Grand Marquis wiring diagrams in this index:
