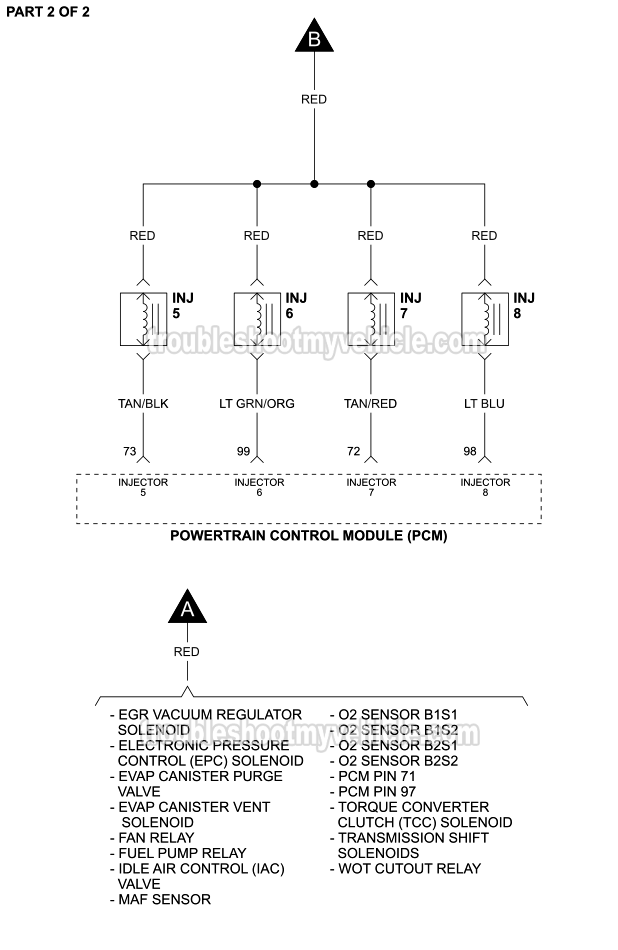

Fuel Injectors Circuit Wiring Diagram (1996, 1997 4.6L Crown Victoria, Grand Marquis)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

• 4.6L Ford Crown Victoria: 1996, 1997.
• 4.6L Mercury Grand Marquis: 1996, 1997.

NOTE: This wiring diagrams includes the following circuit components:

• PCM Power Relay.
• Fuel Injectors.

Fuel Injector Tests: The following tutorial explains how to find the bad or clogged fuel injector:

• How To Test The Fuel Injectors (1992-1997 4.6L Crown Victoria, Grand Marquis).

Wiring Diagrams: You can find all of the available 4.6L Crown Vic/Grand Marquis wiring diagrams in this index:

• 4.6L Crown Victoria And Grand Marquis Index of Articles.
