1996 4.0L Ford Explorer Alternator Wiring Diagram
APPLIES TO: This simplified alternator circuit wiring diagram applies to the following vehicles:
- 1996 4.0L V6 Ford Explorer.
You can find the alternator test explained in this tutorial:
RELATED WIRING DIAGRAMS:

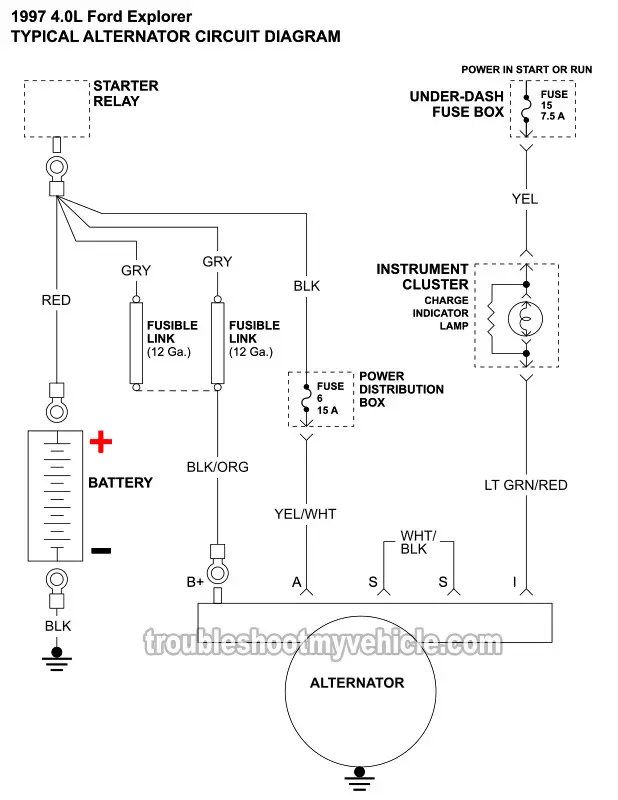

1997 4.0L Ford Explorer Alternator Wiring Diagram
APPLIES TO: This simplified alternator circuit wiring diagram applies to the following vehicles:
- 1997 4.0L V6 Ford Explorer.
You can find the alternator test explained in this tutorial:
RELATED WIRING DIAGRAMS:
More 4.0L Ford Explorer Tutorials
You can find more 4.0L V6 Ford Explorer diagnostic tutorials here:
Here's a sample of the tutorials you'll find in the index:
- How To Test For A Blown Head Gasket (Ford 4.0L Explorer, Aerostar And Mercury Mountaineer).
- How To Test The Fuel Pump (Ford 4.0L Explorer, Aerostar And Mercury Mountaineer).
- How To Test Engine Compression (1991-2010 4.0L Ford Explorer, Aerostar, And Mercury Mountaineer).
