APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:
- 3.0L V6 Ford Escape: 2001, 2002, 2003, 2004.

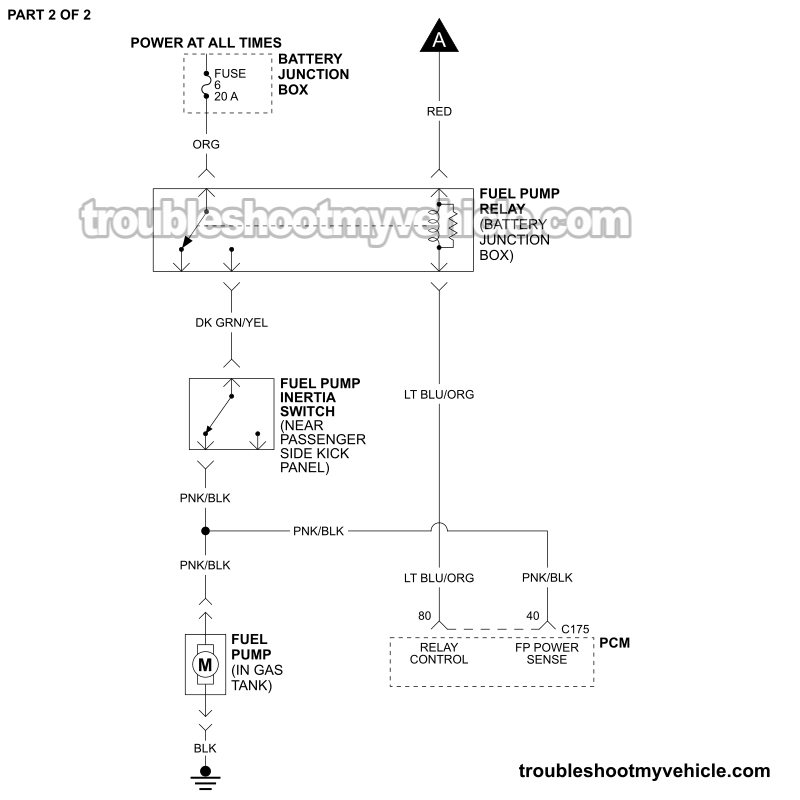

The wiring diagram includes the following circuits:
- PCM Power Relay: Located in the Battery Junction Box (BJB), front left corner of engine compartment.
- Fuel Pump Relay: In Battery Junction Box.
- Fuel Pump Inertia Switch: Near right (passenger) side kick panel.
- Fuel Pump: In gas tank.
FUEL PUMP PRESSURE TEST: This guide walks you through the fuel pump pressure test step-by-step:
FUEL PUMP INERTIA SWITCH DIAGNOSTICS: The tutorials below will walk you through the fuel pump inertia switch tests step by step.
- Power To Fuel Pump Check (2001-2004 3.0L V6 Ford Escape).
- Fuel Pump Inertia Switch Tests (2001-2012 3.0L V6 Ford Escape, Mercury Mariner).
More 3.0L V6 Ford Escape Wiring Diagrams And Tutorials
You can find a complete list of wiring diagrams and diagnostic test tutorials here:
Here's a sample of the tutorials you'll find there:
- How To Test The Fuel Injectors (2001-2004 3.0L Ford Escape).
- How To Test The Ignition COP Coils (2001-2007 3.0L V6 Ford Escape).
- How To Test The Cooling Fan Motors (2001-2004 3.0L V6 Ford Escape - Mazda Tribute).
- How To Test For A Blown Head Gasket (2001-2012 3.0L V6 Ford Escape, Mercury Mariner).
