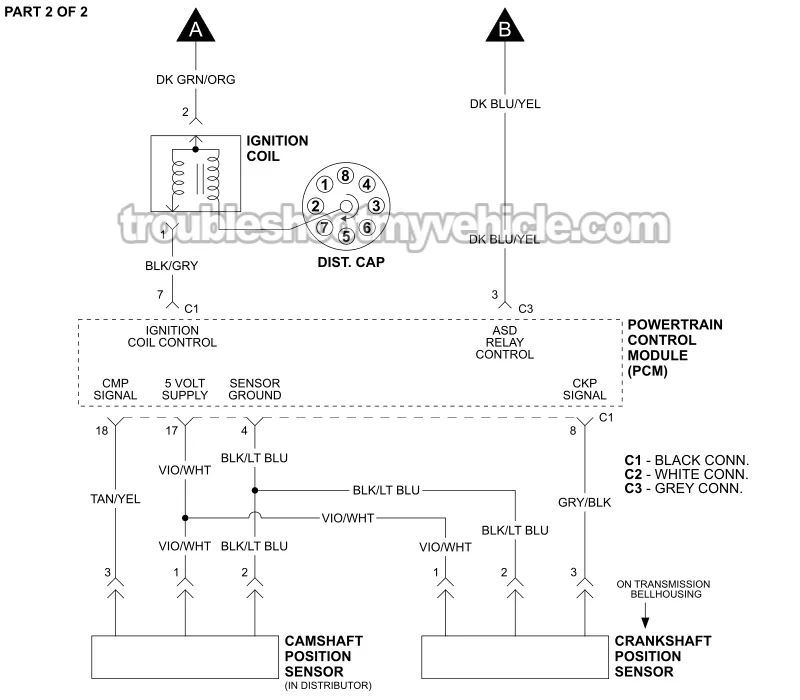

This simplified ignition system wiring diagram applies to the following vehicles:
- 5.2L V8 Dodge Ram 1500 Pickup: 1998, 1999, 2000.
This typical circuit diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.
The camshaft position sensor is also known as the distributor pickup coil.
