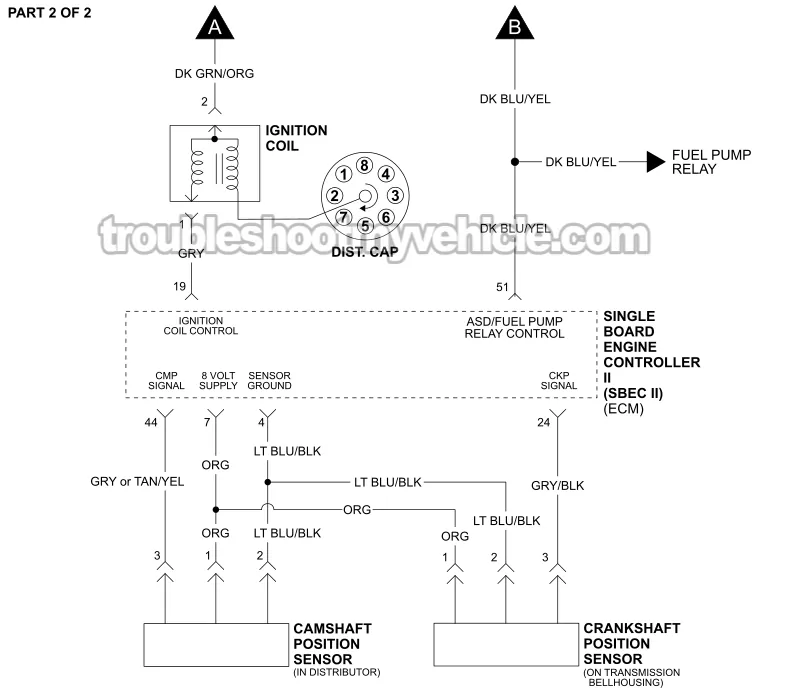

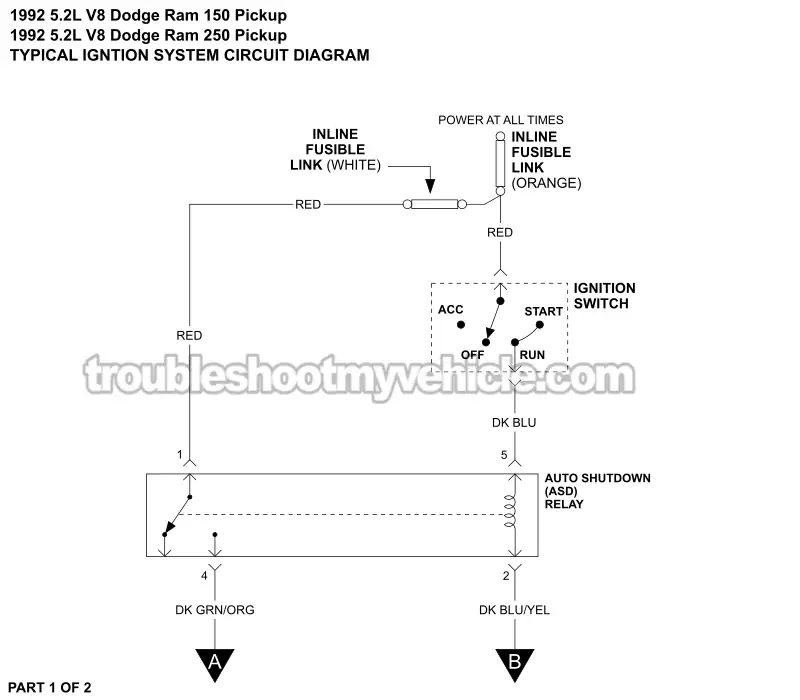

DIAGRAM 1: 1992 5.2L V8 Engine


APPLIES TO: This ignition system wiring diagram applies to the following vehicles:
- 5.2L V8 Dodge Ram 150 Pickup: 1992.
- 5.2L V8 Dodge Ram 250 Pickup: 1992.
This typical circuit diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.
The camshaft position sensor is also known as the distributor pickup coil.

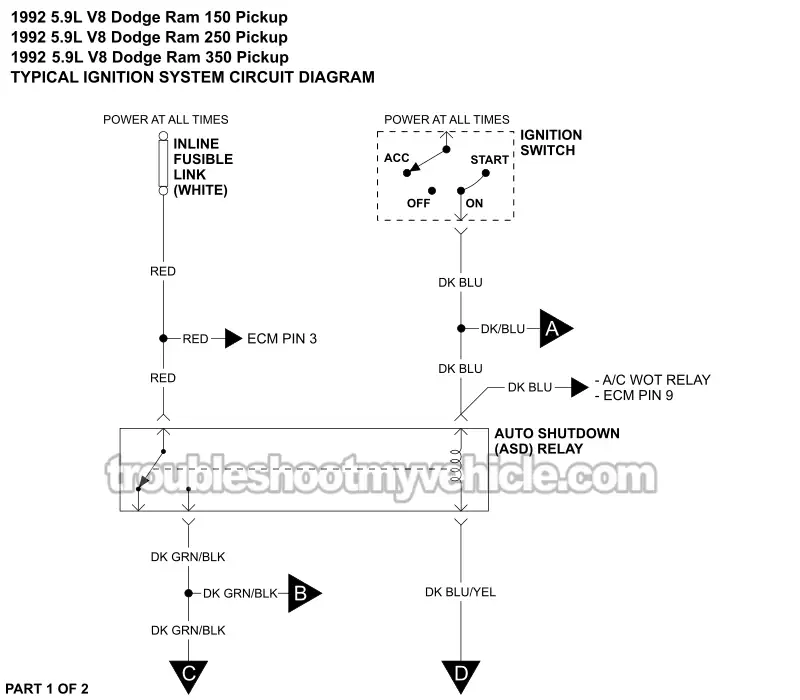

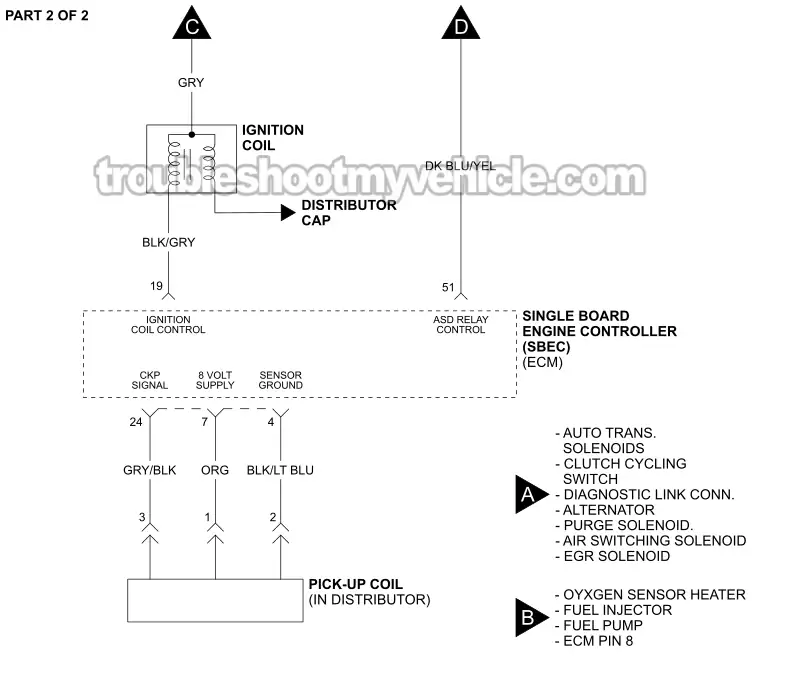

DIAGRAM 2: 1992 5.9L V8 Engine


APPLIES TO: This ignition system wiring diagram applies to the following vehicles:
- 5.9L V8 Dodge Ram 150 Pickup: 1992.
- 5.9L V8 Dodge Ram 250 Pickup: 1992.
- 5.9L V8 Dodge Ram 350 Pickup: 1992.
This typical circuit diagram includes the following circuits: ignition coil, and distributor pickup coil.
Ignition System Tests
- How To Test The Ignition Coil -No Start Tests (Chrysler 3.9L, 5.2L, 5.9L)
- How To Test The Camshaft Position Sensor (1992-1995 5.2L, 5.9L V8 Dodge Ram Pickup).
