Ignition System Wiring Diagram (1992 5.2L, 5.9L V8 Dodge Ram Van)

DIAGRAM 1: 1992 5.2L V8 Engine

APPLIES TO: This ignition system wiring diagram applies to the following vehicles:

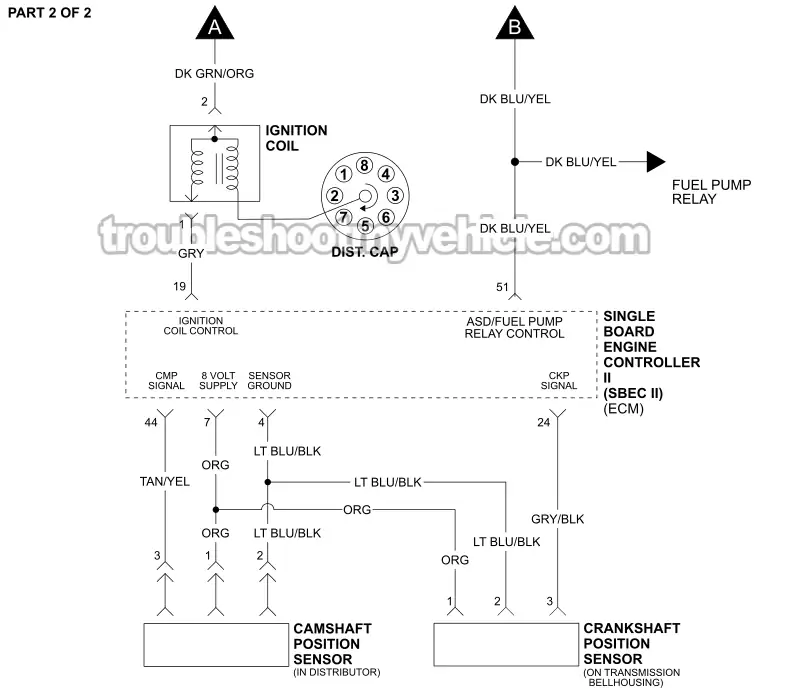

This wiring diagram includes the following circuits: ignition coil, crankshaft position (CKP) sensor, and camshaft position (CMP) sensor.

The camshaft position sensor is also known as the distributor pickup coil.

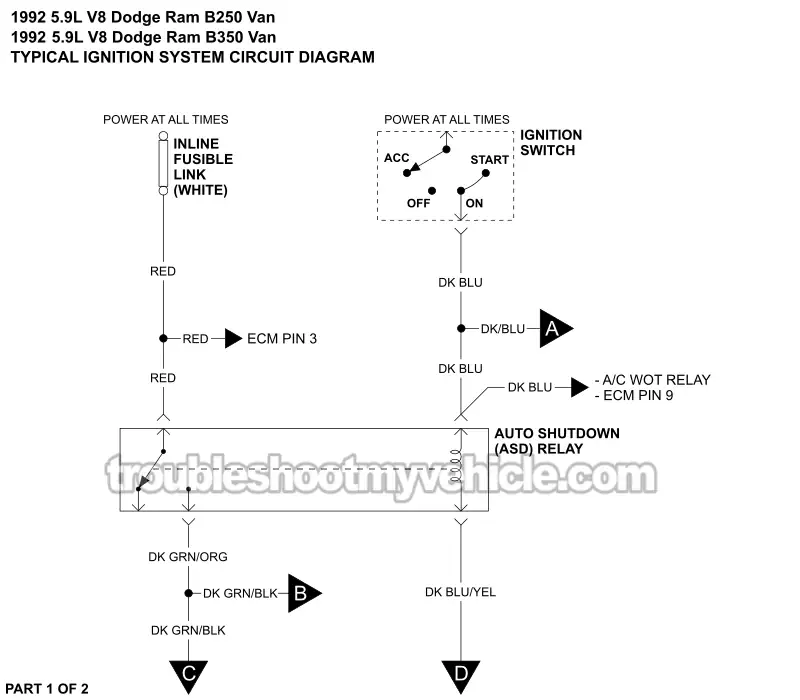

APPLIES TO: This ignition system wiring diagram applies to the following vehicles:

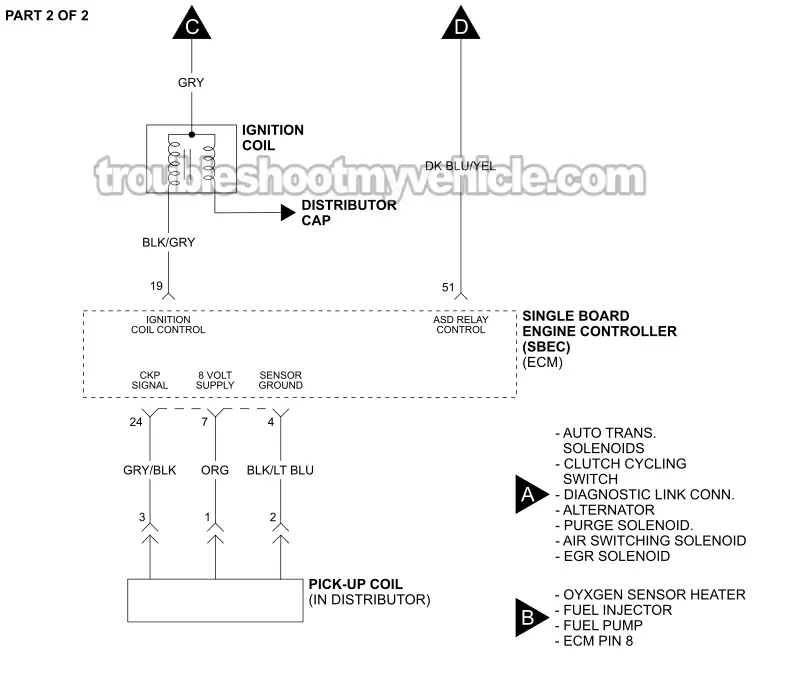

This wiring diagram includes the following circuits: ignition coil, and distributor pickup coil.
