Starter Motor Circuit Wiring Diagram (1991-1993 3.3L Chrysler, Dodge, Plymouth Mini-Van)

  • By: Abraham Torres-Arredondo
  • Created: 04 January 2020
  • Updated: 19 December 2022
  • Articl Id: 824
Page 2 of 2

DIAGRAM 2: With Standard Transmission

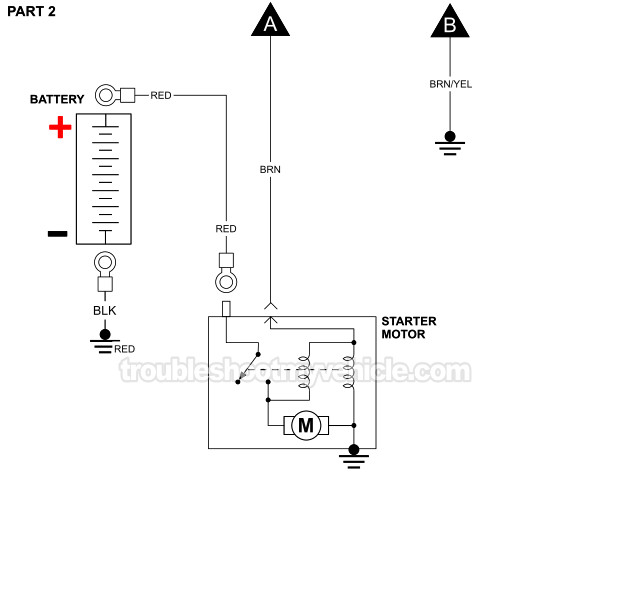

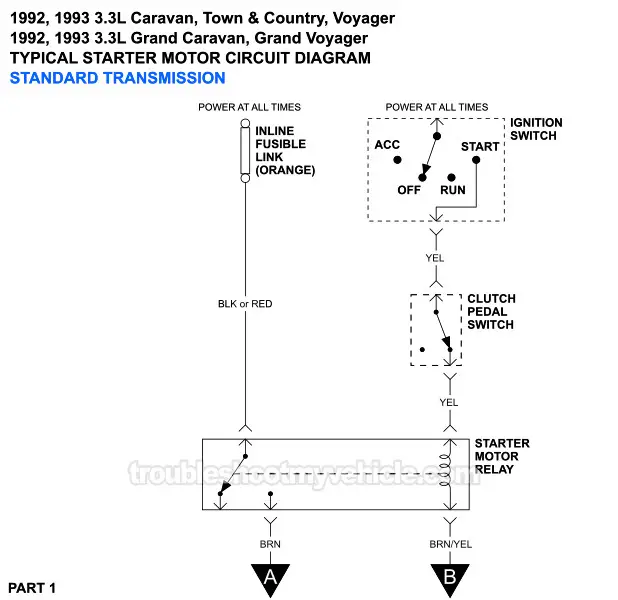

PART 1 of 2 -Starter Motor Circuit Wiring Diagram (With Standard Transmission). 1992, 1993 3.3L V6 Caravan, Grand Caravan, Town & Country, Voyager, Grand Voyager PART 2 of 2 -Starter Motor Circuit Wiring Diagram (With Standard Transmission). 1992, 1993 3.3L V6 Caravan, Grand Caravan, Town & Country, Voyager, Grand Voyager

APPLIES TO: This simplified starter motor circuit wiring diagram applies to the following vehicles:

  • 3.3L V6 Chrysler Town & Country: 1992, 1993.
  • 3.3L V6 Dodge Caravan: 1992, 1993.
  • 3.3L V6 Dodge Grand Caravan: 1992, 1993.
  • 3.3L V6 Plymouth Voyager: 1992, 1993.
  • 3.3L V6 Plymouth Grand Voyager: 1992, 1993.

This typical circuit diagram includes the following circuits: starter motor relay, clutch pedal switch.
