Ignition System Wiring Diagram (2000 3.0L V6 Dodge And Plymouth Minivan)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 3.0L V6 Dodge Caravan: 2000.
• 3.0L V6 Dodge Grand Caravan: 2000.
• 3.0L V6 Plymouth Voyager: 2000.
• 3.0L V6 Plymouth Grand Voyager: 2000.

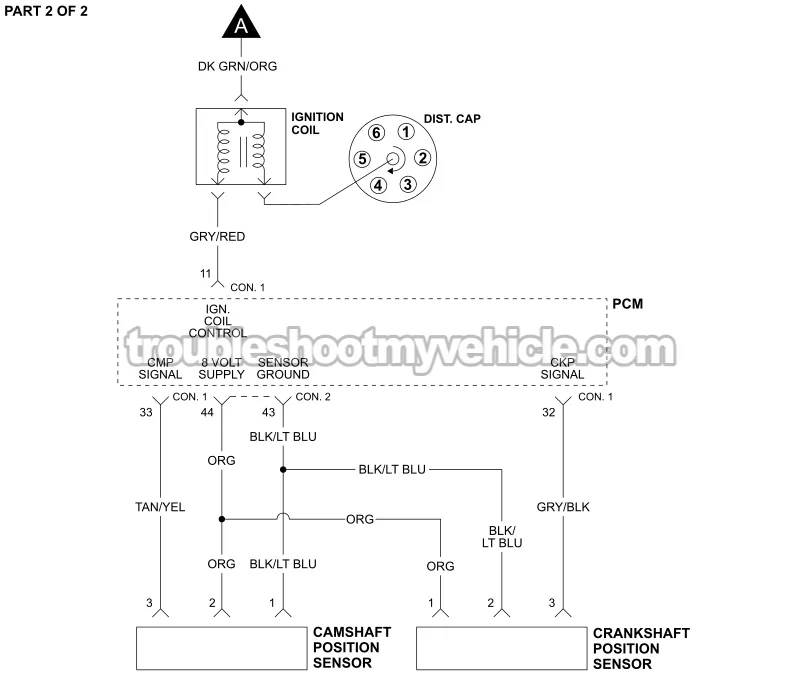

This circuit diagram includes the following circuits:

• Ignition coil.
• Distributor pickup coil (camshaft position -CMP- sensor).
• Crankshaft position -CKP- sensor.

IGNITION SYSTEM TESTS:

• How To Test The Cam Sensor (1996-2000 3.0L Caravan, Grand Caravan, Voyager, Grand Voyager).
• How To Test The Crankshaft Position Sensor (1998-2000 3.0L Caravan, Grand Caravan, Voyager, Grand Voyager).
• How To Test The Ignition System (1996-2000 3.0L Caravan, Grand Caravan, Voyager, Grand Voyager).
• How To Replace The Distributor (1988-2000 3.0L V6 Chrysler, Dodge, Plymouth).
