1995-1996 Neon Power Distribution Center

1995-1996 Dodge/Plymouth Neon Power Distribution Center Fuse and Relay Location/Description

Location and descriptions of the fuses of the under-hood Power Distribution Center for 1995-1996 Dodge/Plymouth Neon.

In Spanish You can find this tutorial in Spanish here: Los Fusibles y Relés Del Power Distribution Center (1995-1996 Neon) (at: autotecnico-online.com).

Fuse Location/Description

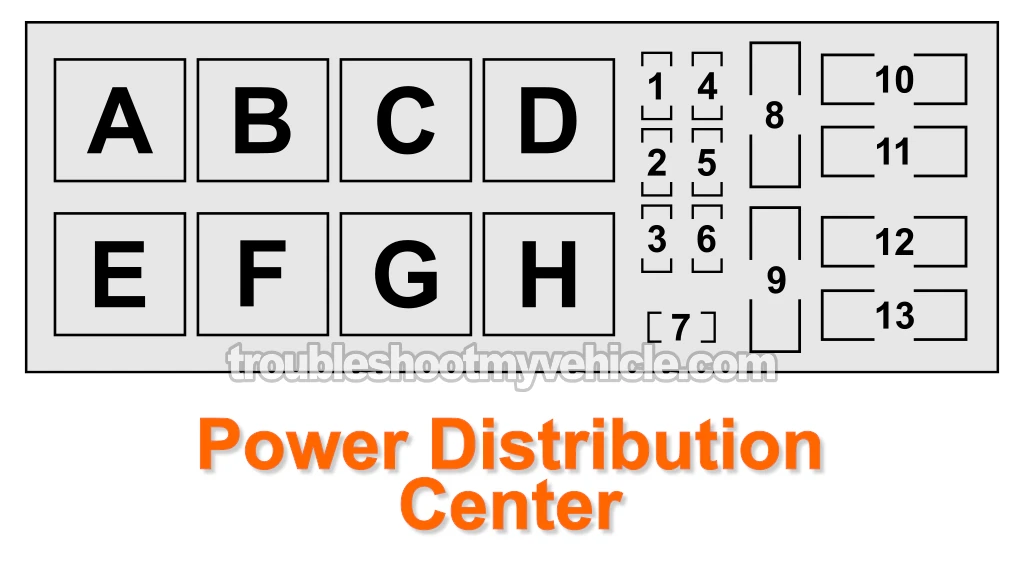

1995-1996 Neon Power Distribution Center
# Amps Fuse Name/Description
1 20 Amp
  • Auto Shut Down (ASD) Relay
  • Fuel Pump Relay
  • Data Link Connector (Cavity 16)
  • PCM
2 15 Amp
  • Horn
3 15 Amp
  • Stop Lamp Switch
  • Cruise Control Switch
4 10 Amp
  • Turn Signal/Hazard Switch
5 10 Amp
  • A/C Compressor Clutch
6 ---
  • Not Used
7 10 Amp
  • Interior Lamps
  • Underhood Lamp
  • Trunk Lamp
  • Instrument Cluster Lamps
  • Radio
  • Power Mirror Switch
  • Remote Keyless Entry Module
  • Time Out Relay
  • Time Delay Relay
8 40 Amp
  • ABS Relay
9 30 Amp
  • Engine Starter Relay
  • Ignition Switch (Cavity 7)
10 30 Amp
  • Rear Window Defogger Switch
11 30 Amp
  • Radiator Fan
12 40 Amp
  • Headlamps
  • Power Feed to: Fuses #1, #2, #3, #4 (Fuse Block)
13 40 Amp
  • Ignition Switch (Cavity 3)
Relay Location/Description
1995-1996 Neon Power Distribution Center
Letter Relay Name
A Not Used
B Fuel Pump Relay
C Auto Shut Down (ASD) Relay
D Horn Relay
E Not Used
F Radiator Fan Relay
G A/C Compressor Clutch Relay
H Engine Starter Motor Relay
