Ignition System Wiring Diagram (1995-1998 2.0L Dodge Stratus, Plymouth Breeze)

APPLIES TO: This simplified ignition system wiring diagram applies to the following vehicles:

• 2.0L Dodge Stratus: 1995, 1996, 1997, 1998.
• 2.0L Plymouth Breeze: 1995, 1996, 1997, 1998.

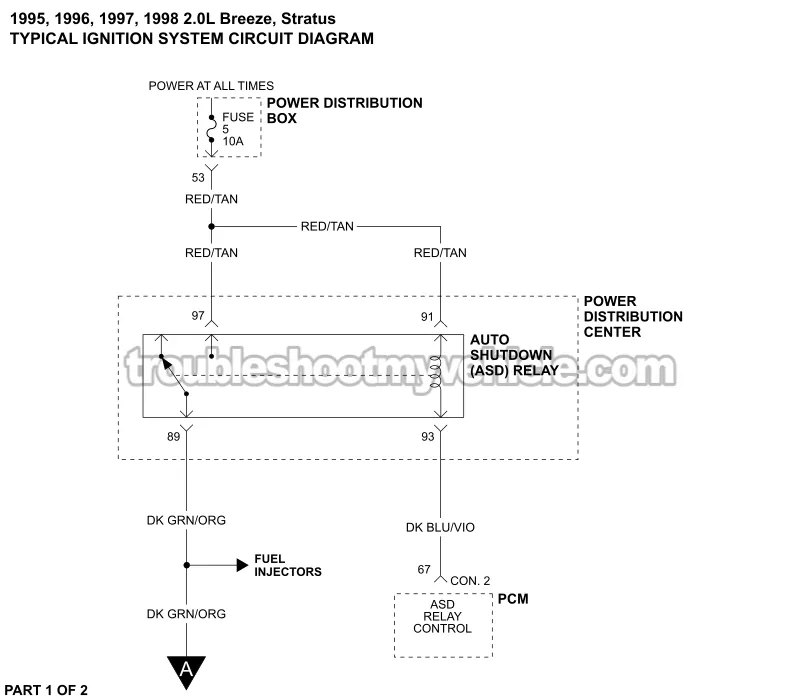

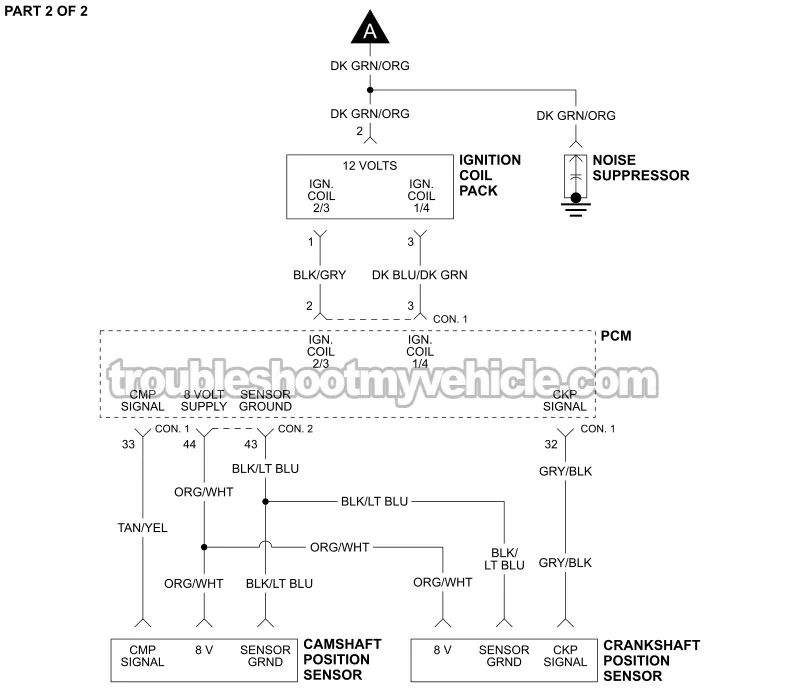

This circuit diagram includes the following circuits:

• Ignition Coil Pack.
• Camshaft Position (CMP) Sensor.
• Crankshaft Position (CKP) Sensor.
