Cooling Fan Circuit Wiring Diagram (1995 3.1L V6 Oldsmobile Cutlass Supreme)

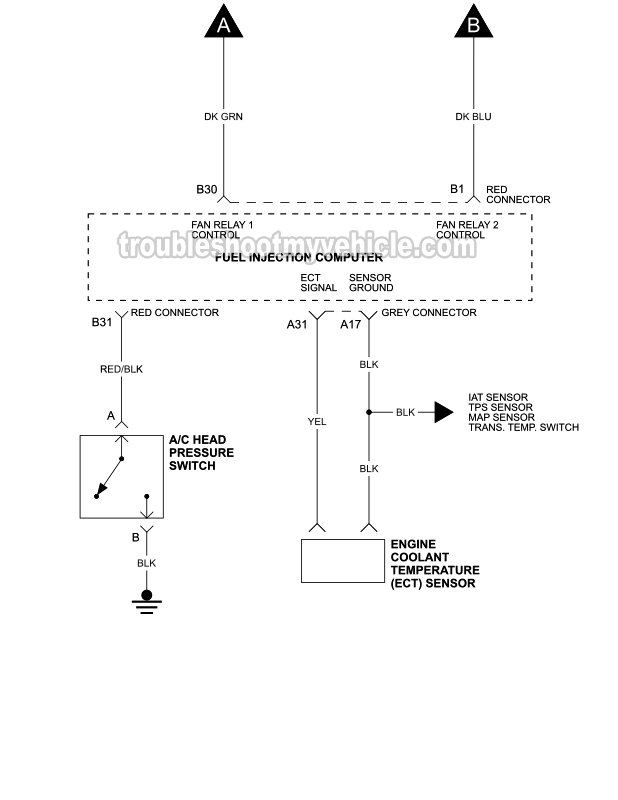

Part 1 of 2: Radiator Cooling Fan Circuit Wiring Diagram (3.1L V6 Oldsmobile Cutlass Supreme) Part 2 of 2: Radiator Cooling Fan Circuit Wiring Diagram (3.1L V6 Oldsmobile Cutlass Supreme)

This simplified cooling fan motor circuit wiring diagram applies to the following vehicles:

  • 1995 3.1L V6 Oldsmobile Cutlass Supreme.

This typical circuit diagram includes the following circuits:

  • Fan Control 1 Relay.
  • Fan Control 2 Relay.
  • Radiator Fan Motor 1.
  • Radiator Fan Motor 2.
  • Engine Coolant Temperature (ECT) Sensor.

RELATED WIRING DIAGRAMS:

You can find a complete list of wiring diagrams for the 3.1L Oldsmobile Cutlass Supreme in this index:
