If you've got a mass airflow (MAF) sensor diagnostic trouble code (DTC) and engine performance is out the window, then you've come to the right place.
In this tutorial, I'm going to show you how to test the MAF sensor on your 1996–1999 3.0L V6 Ford Taurus (or Mercury Sable). The MAF sensor test consists of four simple multimeter checks —no scan tool required.
These four tests include checking the MAF signal voltage output, confirming it's getting power (VPWR), and verifying it has a solid Ground (PWR GND and MAF RTN). With these checks, you'll quickly know if the MAF sensor is good and doing its job, or if it's bad and needs to be replaced.
Contents of this tutorial:
- Symptoms Of A Bad MAF Sensor.
- MAF Sensor Circuit Descriptions.
- Where To Buy The MAF Sensor And Save.
- TEST 1: Testing The MAF Signal.
- TEST 2: Making Sure The MAF Sensor Is Getting Power (VPWR).
- TEST 3: Making Sure The MAF Sensor Is Getting Ground (PWR GND).
- TEST 4: Making Sure The MAF Sensor Is Getting Ground (MAF RTN).
- More 3.0L V6 Ford Taurus Diagnostic Tutorials.
APPLIES TO: This tutorial applies to the following vehicles:
- 3.0L V6 Ford Taurus: 1996, 1997, 1998, 1999.
- 3.0L V6 Mercury Sable: 1996, 1997, 1998, 1999.
1991-1995 MAF SENSOR TESTS:
2000-2003 MAF SENSOR TESTS:
Symptoms Of A Bad MAF Sensor

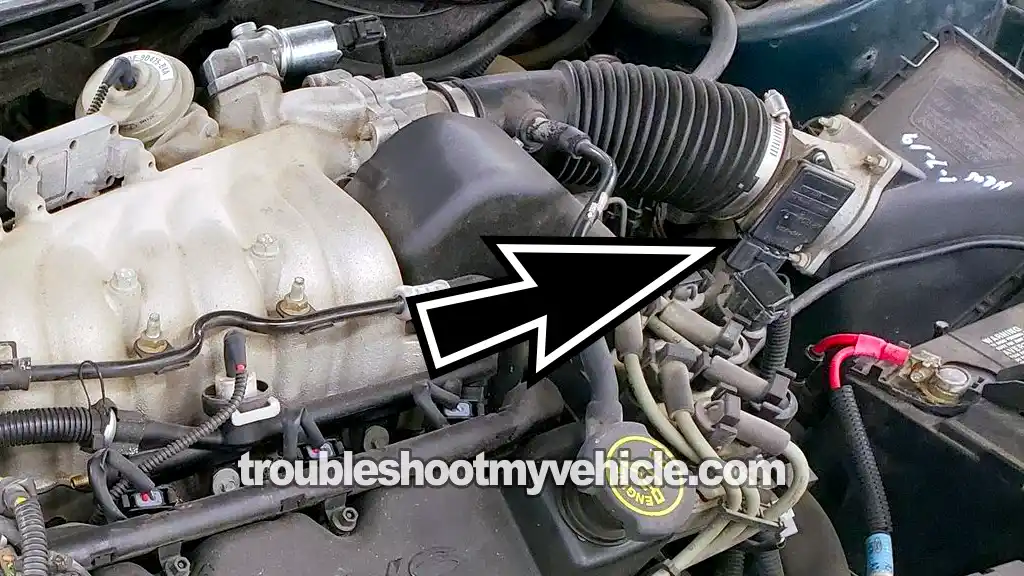

The MAF sensor on your 1996–1999 3.0L V6 Taurus or Sable has one main job: to measure the amount of air entering the engine.
The PCM then uses that information to calculate the correct amount of fuel to deliver.
So when this bad boy fails, the PCM throws a little hissy fit, and the end result is poor engine performance. You'll notice one or more of the following symptoms:
- Check Engine Light: The CEL will be lit on the dash, and the computer will usually store one of these codes:
- P0102: MAF Sensor Signal Low.
- P0103: MAF Sensor Signal High.
- Lack of power: Your Taurus or Sable's engine may feel weak or hesitate when you hit the gas, especially under load or at higher speeds.
- Rough idle/stalling: The engine can idle unevenly or shut off on its own.
- Bad gas mileage: A bad MAF affects the PCM's ability to control the air-fuel mixture, making the engine run rich or lean, which kills gas mileage.
- Black exhaust smoke: If the PCM is adding too much fuel because of a bad MAF sensor signal, you may see black smoke coming out of the tailpipe.
- Hard starting: Sometimes the engine will crank but struggle to start.
- Hesitation or surging: You might feel the engine stumble or surge while accelerating or cruising.
MAF Sensor Circuit Descriptions

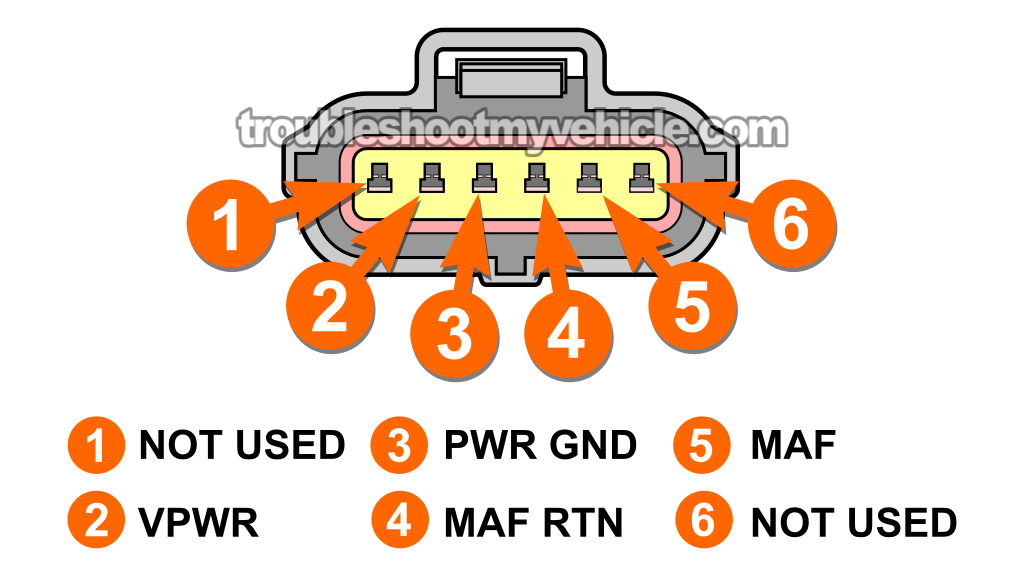

The connector that plugs into the MAF sensor on your Ford Taurus or Mercury Sable is a 6-pin connector, but only 4 wires come out of it.
In the table below, I've included a brief description of what each circuit (wire) does to help us diagnose it in the test instructions that follow.
| Pin | Wire | Description |
|---|---|---|
| 1 | NOT USED | |
| 2 | Red (RED) | VPWR –12 Volts Input in RUN or START |
| 3 | Black with white stripe (BLK/WHT) | PWR GND –Chassis Ground Input |
| 4 | Tan with light blue stripe (TAN/LT BLU) | MAF RTN –MAF sensor Ground (provided by PCM) |
| 5 | Light blue with red stripe (LT BLU/RED) | MAF –MAF signal |
| 6 | NOT USED |
Where To Buy The MAF Sensor And Save
When it's time to replace the MAF sensor, I recommend the following options from well-known automotive brands. I've used these brands myself many times over the years, and I don't hesitate to pass that recommendation on to you:
Disclosure: As an Amazon Associate, I earn from qualifying purchases. If my tutorials help you, using these links is an easy way to support the site at no extra cost to you. Thank you!
NOTE: Not sure if the indicated MAF sensors fit your particular 1996-1999 3.0L V6 Ford Taurus or Mercury Sable? Don't worry. Once you get to the site, they'll ask you for the specifics of your particular vehicle. If it doesn't fit, they'll find you the right one.
TEST 1: Testing The MAF Signal
To make sense of the MAF signal voltage output test we're about to do, it's important to remember that the MAF sensor is designed to react to and measure the amount of airflow entering the engine. In a nutshell:
- When airflow is low —for example, when the engine is idling— the MAF sensor produces a low voltage signal, typically around 1 Volt.
- When airflow increases —for example, when you step on the gas pedal and engine speed goes up— the MAF sensor's voltage output increases.
Since this changing voltage signal corresponds to increases and decreases in air intake, the PCM uses it to know how much air the engine is breathing and calculate the correct amount of fuel it needs.
When the MAF sensor fails, its signal voltage usually stays stuck at one value, no matter the engine RPM or airflow.
So, to get our MAF sensor diagnostic started, we're going to tap into the MAF signal wire with a multimeter and see what the sensor is actually doing as we check it with the engine running at different RPMs.
IMPORTANT: The MAF sensor must remain plugged into its connector while doing this check. You'll need to back probe the connector or pierce the wire with a probe. This is the same tool I use and recommend: Goupchn 4mm Banana to Banana Plug Test Leads Kit (Amazon affiliate link).
Here's what we need to do:
- 1
Switch your multimeter to Volts DC.
- 2
Connect the black lead of the multimeter to the battery negative (-) terminal.
- 3
Connect the red lead to the light blue with red stripe (LT BLU/RED) wire using a proper back probe or wire-piercing tool.
This LT BLU/RED wire connects to terminal number 5 of the MAF sensor connector (see diagram above). - 4
Start the engine and let it idle.
Once idle smooths out, note the voltage reading on the multimeter. A little fluctuation is normal. This first reading is your base MAF signal voltage. - 5
Rev the engine by opening the throttle.
You can do this at the throttle body by moving the linkage, or by having a helper step on the accelerator pedal. - 6
The MAF signal voltage should rise as RPM increases.
- 7
Release the throttle to let the RPM come back down.
- 8
The voltage should drop as the RPMs fall.
- 9
Repeat the accelerate/release cycle a few times to verify the results are consistent.
Here's how to interpret your results:
CASE 1: The signal voltage went up as engine speed increased and dropped when you let off the throttle. That's the correct response and confirms the MAF sensor is working as it should.
If a P0102 (MAF Signal Low) or P0103 (MAF Signal High) code is stored, it means the condition that set the code isn't present at the moment —since the signal is reacting to RPM changes instead of staying fixed high or low.
CASE 2: The signal voltage stayed the same no matter how the engine speed changed. This usually indicates the MAF sensor has failed.
Before replacing the sensor, a few more checks are needed. The next step is: TEST 2: Making Sure The MAF Sensor Is Getting Power (VPWR).
TEST 2: Making Sure The MAF Sensor Is Getting Power (VPWR)
The MAF sensor gets 10 to 12 Volts through the red (RED) wire of the MAF sensor's 4-wire connector.
This power, known as VPWR voltage, is available at terminal 2 of the connector only when the key is in the RUN or START position.
Since TEST 1 showed the MAF signal doesn't react to engine RPM, our second test will confirm that this voltage is reaching the sensor with a simple multimeter check.
IMPORTANT: Be careful when probing the front of the female terminal on the connector. If the multimeter probe is too thick, it can permanently spread the terminal open. If that happens, you'll be stuck replacing the entire connector.
Time to get your hands dirty:
- 1
Disconnect the MAF sensor from its connector.
- 2
Put your multimeter in Volts DC mode.
- 3
Connect the black multimeter lead to the battery negative (-) terminal.
- 4
Gently probe female terminal number 2 with the red multimeter lead.
Terminal 2 should connect to the RED wire on the MAF sensor's 4-wire connector. - 5
Turn the key to the RUN position, but don't crank or start the engine.
- 6
The multimeter should display 10 to 12 Volts.
Here's how to interpret your results:
CASE 1: The multimeter displayed 10 to 12 Volts. This is the correct reading and confirms the sensor is receiving VPWR power.
The next step is to verify the MAF sensor is also getting chassis Ground (PWR GND). Go to: TEST 3: Making Sure The MAF Sensor Is Getting Ground (PWR GND).
CASE 2: The multimeter did not display 10 to 12 Volts. Double-check your meter connections and repeat the test to confirm.
If the voltage is still missing, the MAF issue is not the MAF sensor itself —because it can't function without a proper 10 to 12 Volt supply.
Your next step is to find out why the voltage is missing on the RED wire and repair it, so the MAF sensor can work correctly and clear the diagnostic trouble code (DTC).
TEST 3: Making Sure The MAF Sensor Is Getting Ground (PWR GND)
In this test section, we're going to make sure the MAF sensor is getting chassis Ground, which comes through the black with white stripe (BLK/WHT) wire of the MAF sensor connector.
This chassis Ground is called the PWR GND circuit, and it's the Ground the MAF sensor uses to heat the hot wires in its sensing assembly.
Since this is a chassis Ground, it's always present —whether the key is in the OFF, RUN, or START position.
We'll check it with a simple multimeter voltage test at terminal 3 of the connector.
IMPORTANT: Be careful when probing the front of the connector or female terminal with the multimeter test lead.
These are the test steps:
- 1
Unplug the MAF sensor from its connector.
- 2
Set your multimeter to Volts DC.
- 3
Hook up the red multimeter lead to the battery positive (+) terminal.
- 4
Carefully probe female terminal number 3 with the black multimeter lead.
Terminal 3 should correspond to the BLK/WHT wire at the MAF sensor connector. - 5
Your meter should show between 10 and 12 Volts.
NOTE: Because this is a chassis Ground, it will always be present, whether the key is ON or OFF.
Here's how to interpret the results:
CASE 1: The multimeter displayed 10 to 12 Volts. That's the correct outcome and proves the MAF sensor has chassis Ground.
The next —and final— step is to make sure the PCM is providing sensor Ground (MAF RTN) to the MAF sensor. Go to: TEST 4: Making Sure The MAF Sensor Is Getting Ground (MAF RTN).
CASE 2: The multimeter did not display 10 to 12 Volts. This means the MAF sensor isn't receiving chassis Ground.
Double-check your multimeter hookup and repeat the test. If the reading still doesn't show 10–12 Volts, you can rule out the sensor itself —because it can't function without chassis Ground on the BLK/WHT wire.
The next step is to track down the reason for the missing Ground and repair it.
TEST 4: Making Sure The MAF Sensor Is Getting Ground (MAF RTN)
Your previous three MAF sensor tests have confirmed that:
- TEST 1 —The MAF sensor isn't producing a voltage signal that reacts to engine RPM.
- TEST 2 —It's getting 10 to 12 Volts.
- TEST 3 —It's receiving chassis Ground.
In this last test section, we're going to make sure the PCM is providing Ground to the MAF sensor through the tan with light blue stripe (TAN/LT BLU) wire. This Ground is called the MAF RTN Ground.
To check for the presence of the MAF RTN Ground at terminal 4, we'll do a multimeter voltage test just like in the previous three tests.
CAUTION: Be careful with this circuit. Do not apply battery 12V directly to this wire or terminal —doing so will fry the PCM. The multimeter voltage test I describe below is the safe way to confirm the presence of PCM Ground at terminal 4.
These are the test steps:
- 1
Disconnect the MAF sensor from its electrical connector.
- 2
Place your multimeter in Volts DC mode.
- 3
Connect the red multimeter test lead to the battery positive (+) terminal.
- 4
Gently probe female terminal number 4 with the black multimeter test lead.
Terminal number 4 should correspond to the TAN/LT BLU wire of the MAF sensor connector. - 5
Turn the key to the RUN position but don't crank or start the engine.
- 6
You should see 10 to 12 Volts on the multimeter.
Let's see what your test results mean:
CASE 1: The multimeter displayed 10 to 12 Volts. This tells you the MAF RTN circuit is working correctly and the PCM is providing sensor Ground to the MAF sensor.
If you've confirmed all of the following, then you can conclude the MAF sensor is defective and must be replaced:
- TEST 1 —The MAF signal stays fixed at one value regardless of engine speed.
- TEST 2 —The sensor is receiving 10 to 12 Volts (VPWR).
- TEST 3 —The sensor has chassis Ground (PWR GND).
- This test —Confirmed, the MAF RTN circuit is supplying Ground from the PCM.
When it's time to replace it, here's the MAF sensor from two reliable automotive brands I've personally used and can recommend without hesitation:
- Walker Products 245-1039 Mass Air Flow Sensor Assembly (Amazon affiliate link).
- Delphi AF10117 Air Flow Sensor (Amazon affiliate link).
CASE 2: The multimeter did not display 10 to 12 Volts. This means the MAF sensor is not receiving a sensor Ground (MAF RTN) from your Ford Taurus or Mercury Sable's PCM.
Check your multimeter connections and repeat the test. If it still doesn't show 10 to 12 Volts, the MAF sensor itself isn't the problem behind the MAF trouble code —because it can't function without the MAF RTN Ground provided by the fuel injection computer.
Your next step is to troubleshoot why this Ground is missing and correct the issue.
