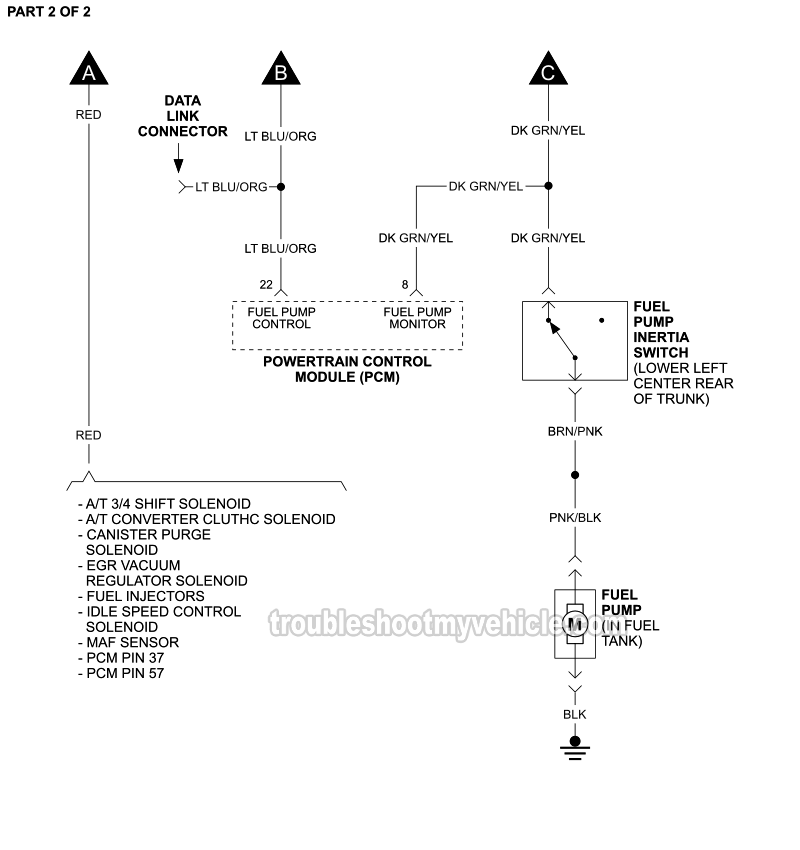

Fuel Pump Circuit Wiring Diagram (1993 2.3L Ford Mustang)

APPLIES TO: This fuel pump circuit wiring diagram applies to the following vehicles:

• 2.3L Ford Mustang: 1993.

NOTE: This wiring diagrams includes the following component circuits:

• Fuel Pump.
• Fuel Pump Inertia Switch.
• Fuel Pump Relay.
• PCM Power Relay.
