Ignition System Circuit Wiring Diagram (1991 2.3L Ford Mustang)

APPLIES TO: This ignition system circuit wiring diagram applies to the following vehicles:

• 2.3L Ford Mustang: 1991.

NOTE: This wiring diagrams includes the following component circuits:

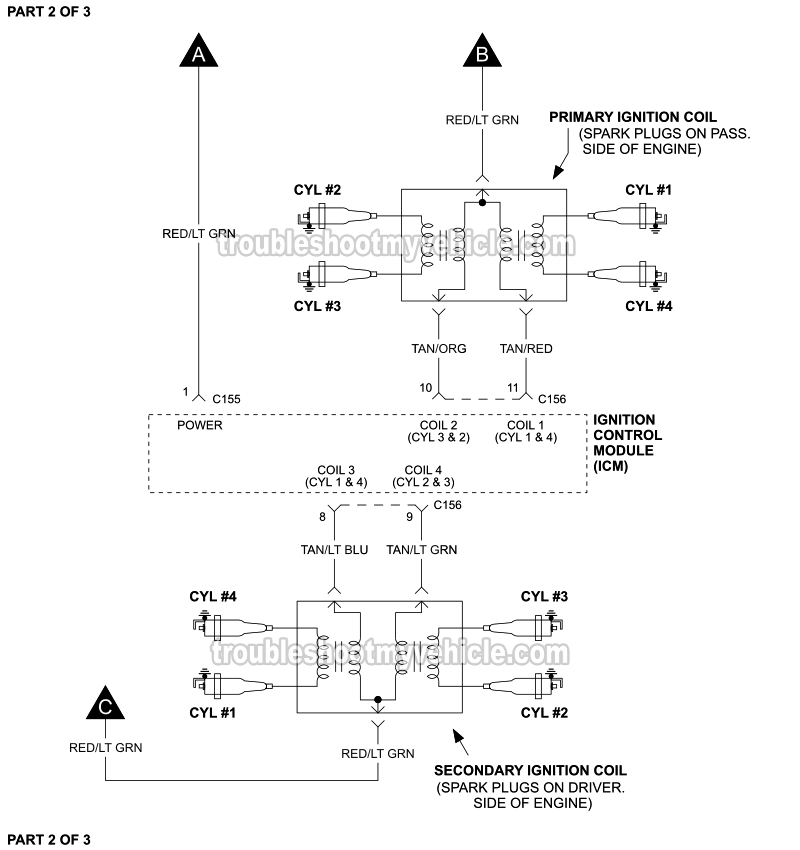

• Ignition Coil Pack (Primary).
• Ignition Coil Pack (Secondary).
• Ignition Control Module (ICM).

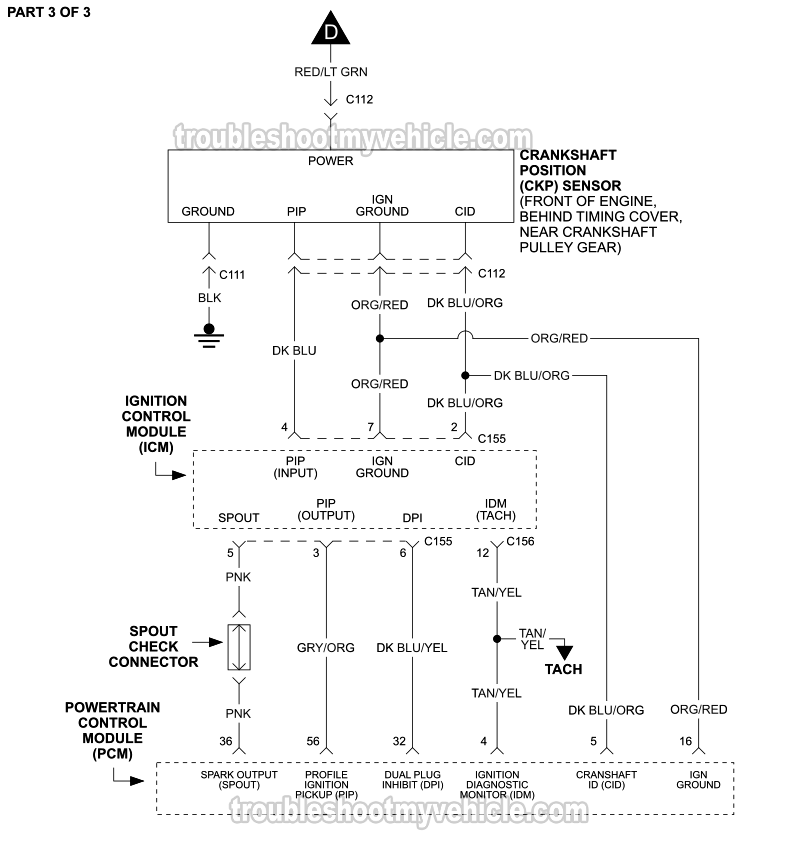

• Crankshaft Position (CKP) Sensor.

ICM And Coil Pack Tests: The following tutorial explains how to test the ignition coil packs and the ignition control module (ICM):

• How To Test The Coil Packs, Ignition Module And CKP Sensor (1989-1994 2.3L Ranger, Mustang, B2300) (at: easyautodiagnostics.com).

Wiring Diagrams: You can find all of the available 2.3L Mustang wiring diagrams here:

• 2.3L Mustang Index of Articles.
