Blower Motor Circuit Wiring Diagram (1994-1995 3.3L V6 Dodge, Plymouth Mini-Van)

  • By: Abraham Torres-Arredondo
  • Created: 11 February 2020
  • Updated: 19 December 2022
  • Articl Id: 825
Blower Motor Circuit Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Voyager, Grand Caravan, And Grand Voyager Blower Motor Circuit Wiring Diagram. 1994, 1995 3.3L V6 Caravan, Voyager, Grand Caravan, And Grand Voyager

APPLIES TO: This simplified blower motor circuit wiring diagram applies to the following vehicles:

  • 3.3L V6 Dodge Caravan: 1994, 1995.
  • 3.3L V6 Dodge Grand Caravan: 1994, 1995.
  • 3.3L V6 Plymouth Voyager: 1994, 1995.
  • 3.3L V6 Plymouth Grand Voyager: 1994, 1995.

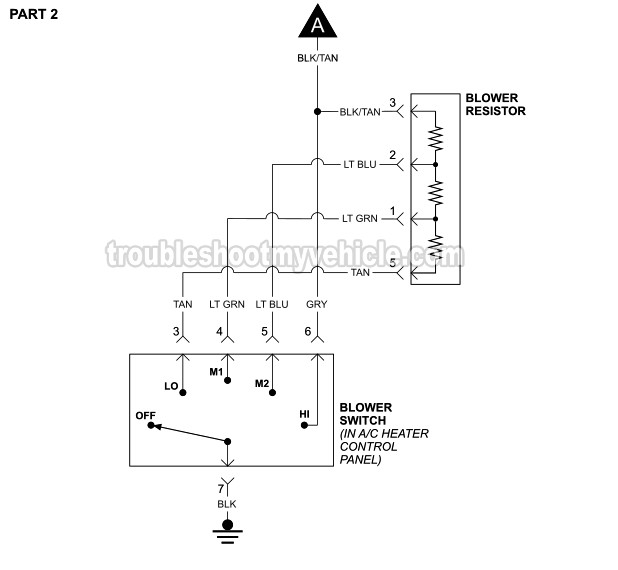

This typical circuit diagram includes the following circuits: blower motor, blower motor resistor block, and the blower motor switch.
