Upstream O2 Sensor Tests (1996-2000 3.0L V6 Dodge And Plymouth Minivan)

If you're trying to figure out how to test the upstream O2 sensor on your 1996–2000 3.0L V6 Dodge Caravan or Plymouth Voyager, this step-by-step guide has you covered.

The upstream oxygen sensor (also known as O2S11 or Bank 1 Sensor 1) plays a critical role in controlling fuel delivery and keeping your engine running efficiently.

When it starts to fail, you'll often see check engine codes, poor fuel economy, or a rough idle.

In this tutorial, I'll show you how to test the sensor using a simple scan tool —no expensive equipment or guesswork required.

APPLIES TO: This tutorial applies to the following vehicles:

• 3.0L V6 Dodge Caravan: 1996, 1997, 1998, 1999, 2000.
• 3.0L V6 Dodge Grand Caravan: 1996, 1997, 1998, 1999, 2000.
• 3.0L V6 Plymouth Voyager: 1996, 1997, 1998, 1999, 2000.
• 3.0L V6 Plymouth Grand Voyager: 1996, 1997, 1998, 1999, 2000.

RELATED DIAGNOSTIC TUTORIALS:

• Code P0171 Diagnostics (1996-2000 3.0L V6 Dodge And Plymouth Minivan).
• How To Check For Vacuum Leaks With Carb Cleaner Spray (1990-2000 3.0L V6 Dodge And Plymouth Minivan).

Symptoms Of A Bad Upstream O2 Sensor

The upstream O2 sensor plays a critical role in how your minivan's PCM manages fuel delivery. It's constantly monitoring the exhaust gases and helping the PCM fine-tune the air/fuel ratio in real time.

When this sensor starts to fail —whether it's slow to respond, sending bad data, or stuck at a fixed voltage —it can throw the whole fuel system off balance. The result? Poor engine performance and drivability issues that are easy to confuse with other problems.

Here are the most common signs of a failing upstream oxygen sensor on a 1996–2000 3.0L V6 Dodge or Plymouth minivan:

• Check engine light (CEL) is on: You might see codes like P0131, P0132, or even P0171 (lean condition caused by false O2 feedback).
• Poor fuel economy: A lazy or stuck sensor can cause the PCM to overcorrect, leading to excessive fuel consumption.
• Rough idle or hesitation: Especially noticeable during cold starts or when the engine transitions to closed loop operation.
• Strong fuel smell from exhaust: If the PCM is being told the engine is lean when it's not, it may over-fuel and cause a rich exhaust mixture.
• Failed emissions test: If your state requires emissions, a bad upstream sensor will almost always cause your minivan to fail.

Keep in mind, these symptoms can also be caused by other issues —so before replacing the sensor, it's important to test it properly. That's exactly what this tutorial will show you how to do.

Upstream O2 Sensor (O2S11) Diagnostic Basics

Before testing the upstream O2 sensor, it helps to understand what it does, where it is, and what kind of signal it should produce.

The upstream oxygen sensor —also known as O2S11, Oxygen Sensor 1, Bank 1, or simply the front O2 sensor— is mounted on the exhaust manifold that's closest to the firewall. It's sometimes also called the pre-cat O2 sensor because it sits before the catalytic converter.

Its job is simple but critical: monitor the oxygen level in the exhaust gases and send that information to the PCM. Based on this signal, the PCM adjusts how much fuel gets injected to keep the air/fuel mixture right where it needs to be.

Here's how the sensor works in practice:

• When the exhaust gases have less oxygen (meaning the mix is rich), the sensor sends a high voltage signal —around 0.9 Volts.
• When the exhaust has more oxygen (meaning the mix is lean), the signal drops to a low voltage —around 0.1 Volts.

During normal closed-loop operation, the sensor's voltage rapidly switches back and forth between rich and lean —this constant cycling tells you the sensor is active and working correctly. This is called a rich/lean switching pattern, and it's how the PCM fine-tunes fuel delivery in real time.

To check if your sensor is doing its job, all you need is a basic scan tool with live data —nothing fancy or expensive. Even a generic OBD-II scanner that shows O2 sensor voltage will work great.

A healthy upstream O2 sensor will show a rapidly fluctuating signal, bouncing between 0.1V and 0.9V at idle. If it's flatlined, slow to respond, or stuck high or low —the sensor may be faulty (or there could be another issue, which we'll get into later).

NOTE: The upstream sensor can be labeled differently depending on the scanner or repair manual you're using. It may appear as:

• O2S11 (Oxygen Sensor 1, Bank 1).
• Front O2 Sensor.
• Pre-Cat Sensor.
• Bank 1 Sensor 1

It all refers to the same sensor —the one before the catalytic converter, closest to the engine.

Where To Buy The O2 Sensor And Save

TEST 1: Forcing A Rich Condition

Now that you know what the upstream O2 sensor is supposed to do, it's time to see it in action.

In this section, we'll check whether the sensor can properly respond when we intentionally make the air/fuel mixture run rich.

This simple test will show whether the sensor can still detect a fuel-heavy exhaust mixture —a key sign that it's functioning correctly.

No special tools needed —just a can of carb cleaner spray —and there's nothing you'll need to take apart.

If the sensor's still doing its job, you'll see it. And if it's on the way out, this test will make that obvious.

Don't have a scan tool? Need a scan tool? Check out my recommendation: ZM301 OBD2 Scanner Diagnostic Tool (at: amazon.com).

Here's what you'll need to do:

1. 1

   Start the engine and let it warm up for at least 15 minutes so that it reaches full operating temperature.

2. 2

   Plug in your scan tool and switch over to its Live Data screen.

3. 3

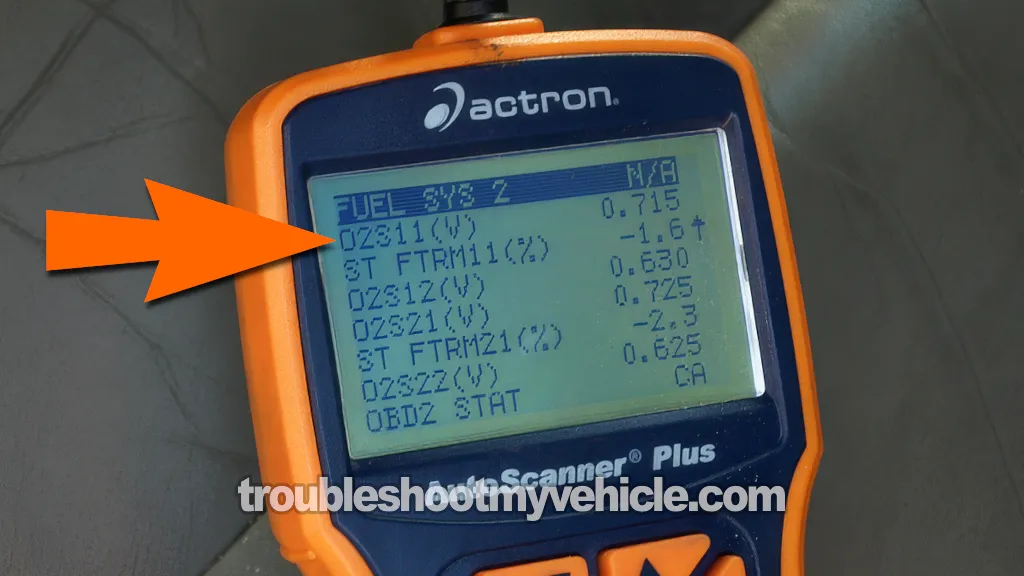

   Scroll through the PIDs until you find the one labeled O2S11.

   It might be labeled a little different in your scan tool, consult your user's manual if in doubt.

4. 4

   Keep your eye on the O2S11 voltage readings.

   With the engine idling and fully warmed up, the numbers should bounce around quickly —typically between 0.200 and 0.900 Volts. If the don't —no worries, continue to the next step.

5. 5

   While the engine is running, spray a brief shot of carb cleaner into a vacuum hose that pulls direct intake vacuum.

   Don't overdo it —a short burst is enough. If the engine stalls, no big deal. Just restart it and go easier on the spray the next time.

6. 6

   Watch what happens to the O2S11 voltage.

   If the sensor is working correctly, you should see the voltage jump to 0.800–0.900 Volts —that spike means it's picking up the rich exhaust mixture.

7. 7

   Stop spraying and observe the sensor readings again.

8. 8

   The voltage should drop back down and begin cycling again.

   Within a few seconds, the readings should return to bouncing between lean and rich —from about 0.100V to 0.900V —if the sensor is functioning normally.

What your test results mean:

CASE 1: O2S11 voltage spiked to 0.900V while spraying carb cleaner. Good news —this means the upstream O2 sensor can still detect a rich mixture. That's exactly what it should do.

Next, we'll check if the sensor can detect a lean condition. Continue to: TEST 2: Forcing A Lean Condition.

CASE 2: O2S11 voltage did NOT increase when carb cleaner was sprayed. This tells you the sensor isn't responding to a rich exhaust mix, and it's likely failed. You can go ahead and replace Bank 1 Sensor 1.

TEST 2: Forcing A Lean Condition

Now that you've tested how the upstream O2 sensors respond to a rich condition, it's time to see if they can also detect a lean one. This is just as important —a working sensor should respond quickly when there's too much air in the mix.

We're going to create that lean condition by letting a bit of unmetered air into the intake system. The easiest and safest place to do that is by slightly loosening the large vacuum hose connected to the brake booster check valve.

This hose pulls in a strong amount of air when loosened, and that extra air will cause the air/fuel mixture to go lean —if the O2 sensor is working correctly, it'll spot and respond to the change immediately.

IMPORTANT: Don't completely remove the vacuum hose. That'll likely cause the engine to stall. You only need to back it off slightly —just enough to hear a faint hissing sound as air sneaks in.

TIP: Before running the test with the engine on, do a quick dry run. That hose might be stuck from age, and you don't want to be wrestling with it while the engine's running.

Time to get to work:

1. 1

   Start the engine and let it idle for about 15 minutes so it reaches full operating temperature.

2. 2

   Connect your scan tool and switch to Live Data mode.

3. 3

   Scroll down to find the front O2 sensor PID —look for O2S11.

4. 4

   Monitor the voltage reading for a few seconds.

   You should see it fluctuating between 0.100V and 0.900V like in the previous test.

5. 5

   Now, gently loosen the brake booster vacuum hose from the check valve.

   Back it off just enough to introduce unmetered air —a hissing sound is your cue that it's working.

6. 6

   Watch the voltage values on your scan tool.

   If the sensor is functioning, the reading should drop quickly below 0.200V. In some cases, you may even see values around 0.100V.

7. 7

   Once the drop is confirmed, push the hose back onto the check valve and reseal the vacuum leak.

8. 8

   Observe the sensor again.

   After a few seconds, their readings should return to normal —cycling between 0.100V and 0.900V as the PCM regains control of the mixture.

Let's connect the dots and see what your result means:

CASE 1: O2S11 dropped below 0.200V during the vacuum leak. That's exactly what you want —the upstream sensor is working properly and responding to a lean condition as it should.

If you're still seeing O2 sensor-related codes, the issue may lie elsewhere. Jump to: Oxygen Sensor Codes Keep Coming Back.

CASE 2: O2S11 didn't react —no drop in voltage during the test. That means Bank 1 Sensor 1 is no longer working as expected. Replacement is your next step.

O2 Sensor Codes Keep Coming Back

You ran the tests, confirmed the upstream oxygen sensor is working —maybe you even replaced it —but the check engine light keeps coming back with O2 sensor codes. What gives?

Chances are, the real problem isn't the sensor itself —it's the air/fuel mixture that's off, and something upstream is throwing things out of balance.

In other words, the PCM is blaming the O2 sensor, but it's just the messenger. Some other component is likely causing the engine to run too rich or too lean, and the upstream sensor is simply reporting what it sees.

Here are some common troublemakers that can lead to this situation:

• Weak fuel pump: Not delivering enough fuel pressure, causing a lean mixture that trips O2-related codes.
• Leaky intake manifold gaskets: Let unmetered air into the intake, leaning out the mixture beyond what the PCM can adjust for.
• Dirty or restricted fuel injectors: Prevent proper fuel delivery to one or more cylinders, which can cause misfires and lean readings.
• Bad MAP sensor: Feeds the PCM incorrect vacuum or load info, which can skew fuel calculations in either direction.
• Engine Coolant Temperature (ECT) sensor off-calibration: If it reads colder than actual temp, the PCM stays in open loop too long and dumps excess fuel.
• Faulty Intake Air Temperature (IAT) sensor: If it misreads the incoming air temp, fuel delivery adjustments may go out of range.
• Wrong thermostat or stuck open: Keeps the engine running too cold, which causes the PCM to keep the mix unnecessarily rich.
• Exhaust leak ahead of the O2 sensor: Allows oxygen-rich air to mix into the exhaust, tricking the upstream O2 sensor into reporting a lean condition.

All of these can fool the PCM into adjusting fuel delivery the wrong way —and when the fuel trims max out, you get O2 sensor codes that make the sensor look guilty.

The one thing that can complicate things a bit is that these issues aren't always present during testing. A failing O2 sensor, weak fuel pump, or a borderline gasket failure may only act up once in a while —and that makes it harder to catch.

Here's the best approach: give it time. If the check engine light keeps coming back, let the issue worsen slightly. When the symptoms become more consistent, you'll have a better shot at catching it in the act with your scan tool —and pinpointing the true cause once and for all.
