Radiator Fan Circuit Wiring Diagram (1994-1995 2.5L Caravan And Voyager)

DIAGRAM 1: Low Speed Radiator Fan Circuit

This typical low speed radiator fan circuit diagram applies only to the following vehicles:

• 2.5L Dodge Caravan: 1994, 1995.
• 2.5L Plymouth Voyager: 1994, 1995.

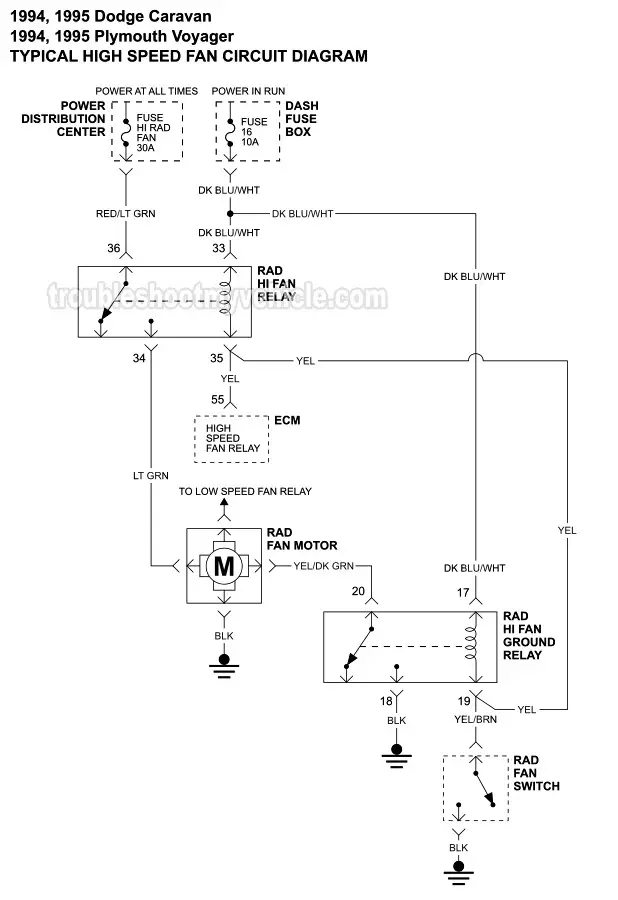

DIAGRAM 2: High Speed Radiator Fan Circuit

This simplified ignition system wiring diagram applies to the following vehicles:

• 2.5L Dodge Caravan: 1994, 1995.
• 2.5L Plymouth Voyager: 1994, 1995.

This typical high speed radiator fan circuit diagram applies only to the following vehicles:
