Ignition System Wiring Diagram (1997-1998 1.5L Toyota Tercel)

  • By: Abraham Torres-Arredondo
  • Created: 08 May 2022
  • Updated: 12 December 2022
  • Articl Id: 1165

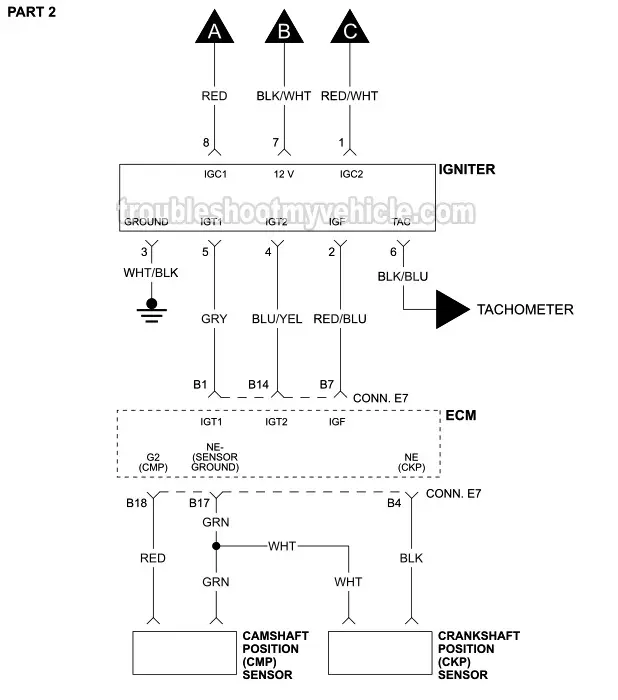

PART 1 -Ignition System Circuit Wiring Diagram (1997, 1998 1.5L Toyota Tercel) PART 2 -Ignition System Circuit Wiring Diagram (1997, 1998 1.5L Toyota Tercel)

This simplified ignition system circuit wiring diagram applies to the following vehicles:

  • 1997, 1998 1.5L Toyota Tercel.

Circuits included in this ignition system wiring diagram:

  • Igniter (ignition control module).
  • Ignition coils.
  • Camshaft position (CMP) sensor.
  • Crankshaft position (CKP) sensor.

The following tutorials will help you test the igniter, the ignition coils, and the CMP and CKP sensors:

You can find the 1995-1996 ignition system wiring diagram here:

RELATED WIRING DIAGRAMS:

More 1.5L Toyota Tutorials

You can find a complete list of 1.5L Toyota Tercel tutorials and wiring diagrams in this index:

Here's a small sample of the tutorials you'll find in the index:
