Alternator Circuit Wiring Diagram (1993-1996 2.2L Buick Century, Oldsmobile Cutlass Ciera)

1993 Alternator Circuit Wiring Diagram

This simplified alternator circuit wiring diagram applies to the following vehicles:

• 2.2L Buick Century: 1993.
• 2.2L Oldsmobile Cutlass Ciera: 1993.

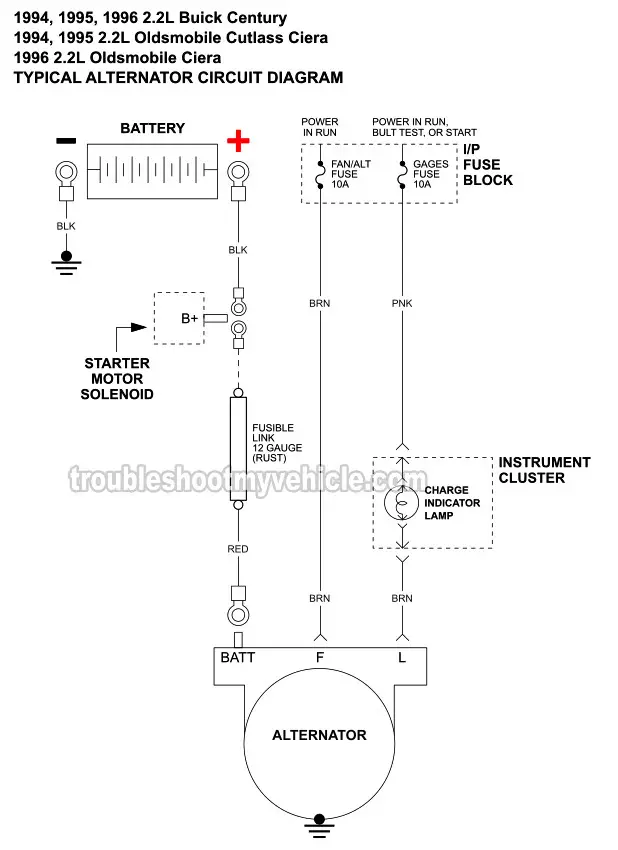

1994-1996 Alternator Circuit Wiring Diagram

This simplified alternator circuit wiring diagram applies to the following vehicles:

• 2.2L Buick Century: 1994, 1995, 1996.
• 2.2L Oldsmobile Cutlass Ciera: 1994, 1995.
• 2.2L Oldsmobile Ciera: 1996.

You can find the alternator test explained step by step here:

• How To Test The Alternator (1993-1996 2.2L Buick Century, Oldsmobile Cutlass Ciera).
