Horn Circuit Wiring Diagram (1997-2001 4.6L, 5.4L V8 Ford E150, E250, E350)

  • By: Abraham Torres-Arredondo
  • Created: 13 April 2024
  • Updated: 14 April 2024
  • Articl Id: 1235
Horn Circuit Circuit Diagram (1997, 1998, 1999, 2000, 2001 4.6L And 5.4L V8 Ford E150, E250, E350) Horn Circuit Circuit Diagram (1997, 1998, 1999, 2000, 2001 4.6L And 5.4L V8 Ford E150, E250, E350)

APPLIES TO: This circuit wiring diagram applies to the following vehicles:

  • 4.6L V8 Ford E150: 1997, 1998, 1999, 2000, 2001.
  • 5.4L V8 Ford E150: 1997, 1998, 1999, 2000, 2001.
  • 4.6L V8 Ford E250: 1997, 1998, 1999, 2000, 2001.
  • 5.4L V8 Ford E250: 1997, 1998, 1999, 2000, 2001.
  • 5.4L V8 Ford E350: 1997, 1998, 1999, 2000, 2001.

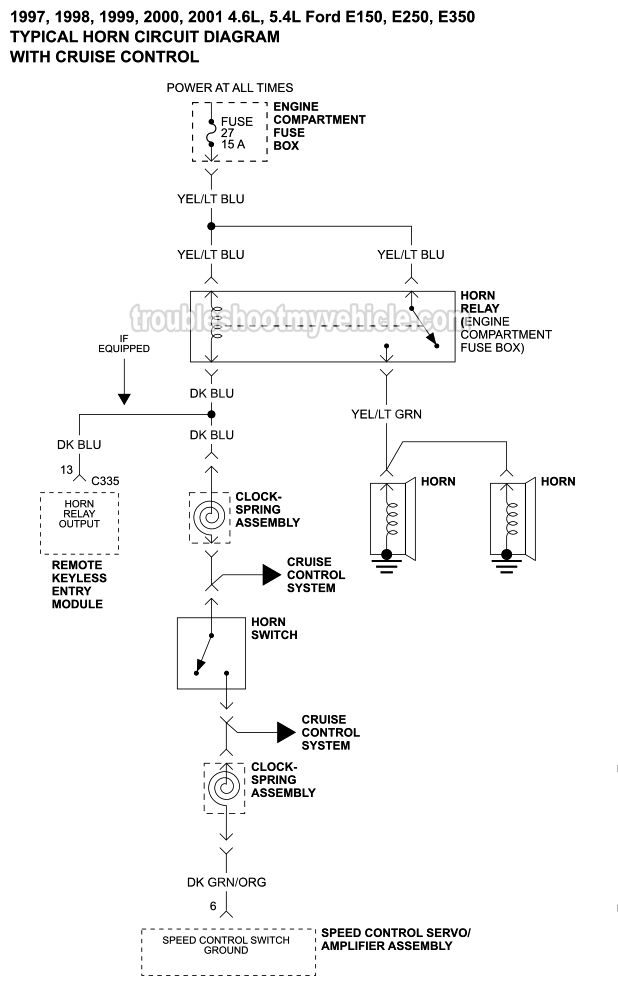

NOTE: This wiring diagrams includes the following horn circuit components:

  • Horn Circuit Relay.
  • Horn Switch.
  • Horns.
