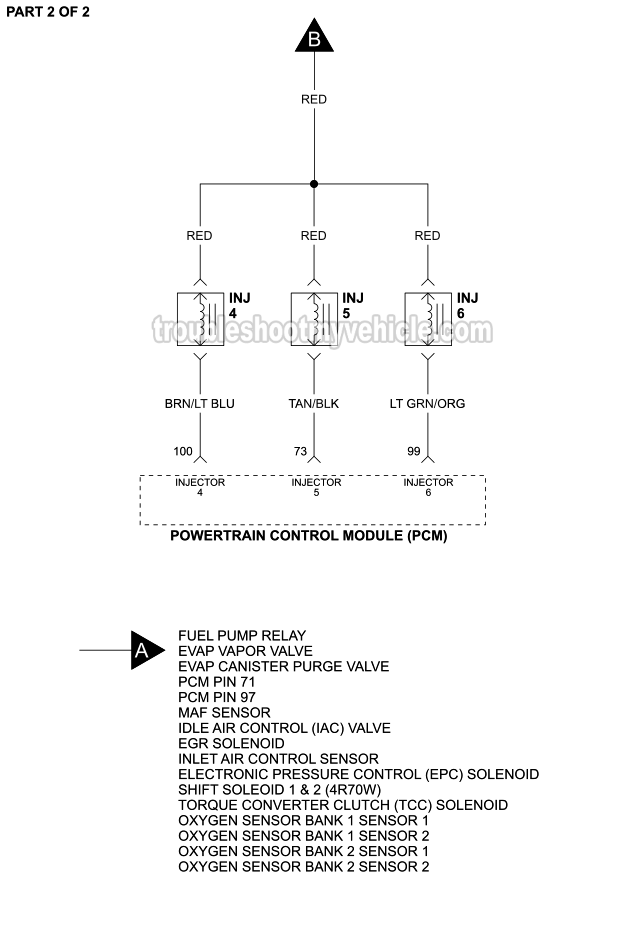

Fuel Injector Circuit Wiring Diagram (1997-1999 4.2L V6 Ford E150, E250)

APPLIES TO: This fuel injector circuit wiring diagram applies to the following vehicles:

• 4.2L V6 Ford E150: 1997, 1998, 1999.
• 4.2L V6 Ford E250: 1997, 1998, 1999.

NOTE: This wiring diagrams includes the following ignition system components:

• Fuel injectors.
• PCM Power Relay.

The following tutorial explains how my method of testing the fuel injectors:

• How To Test The Fuel Injectors (1997-2000 4.2L V6 Ford E150, E250).

F-SERIES PICKUPS: The fuel injector circuit wiring diagram for the 1997-1999 4.2L V6 Ford F150/F250 pickups is available here:

• Fuel Injector Circuit Wiring Diagram (1997-1998 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
• Fuel Injector Circuit Wiring Diagram (1999 4.2L V6 Ford F150, F250) (at: easyautodiagnostics.com)
